TPD6E001RSERG4 by Texas Instruments

The TPD6E001RSERG4 is a robust, state-of-the-art ESD protection device from the renowned manufacturer Texas Instruments. This component is designed to safeguard sensitive electronics from static electricity and other transient voltage spikes that can cause irreparable damage to integrated circuits. The TPD6E001RSERG4 is particularly well-suited for high-speed data interfaces, providing peace of mind for both designers and users of advanced electronic equipment.

This device features six channels of ultra-low capacitance diodes, which ensures that signal integrity is maintained even at high frequencies. Each channel is capable of withstanding electrostatic discharges (ESD) up to ±15kV in air-gap discharge and ±8kV in contact discharge, as per the IEC 61000-4-2 international standard. This level of protection makes the TPD6E001RSERG4 an excellent choice for applications where reliability and long-term durability are critical.

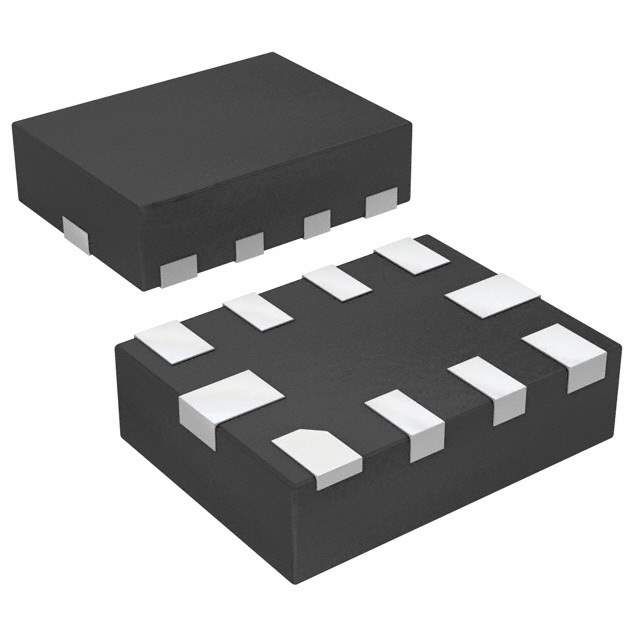

The TPD6E001RSERG4 comes in a compact, leadless package (UQFN-10), which is ideal for space-constrained applications. Its small form factor does not compromise its performance, as it still provides excellent thermal characteristics and low clamping voltages. The device is also characterized for operation from –40°C to 85°C, making it suitable for a wide range of operating environments.

Integrating the TPD6E001RSERG4 into a circuit design is straightforward, thanks to its compatibility with standard manufacturing processes. It can be used to protect a variety of interfaces, including USB 2.0, Ethernet, SIM ports, video lines, and other high-speed data lines. With its fast response time, the device quickly reacts to transient voltage spikes, ensuring that the protected components remain safe from ESD events.

Overall, the TPD6E001RSERG4 by Texas Instruments represents a reliable and efficient solution for protecting sensitive electronic circuits from the dangers of electrostatic discharge. Its combination of low capacitance, high ESD protection, and small package size makes it a versatile component that enhances the durability and reliability of a wide range of electronic products.
