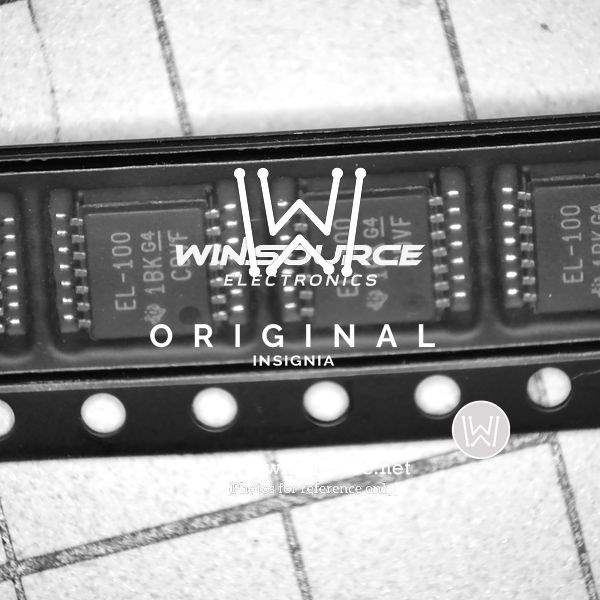

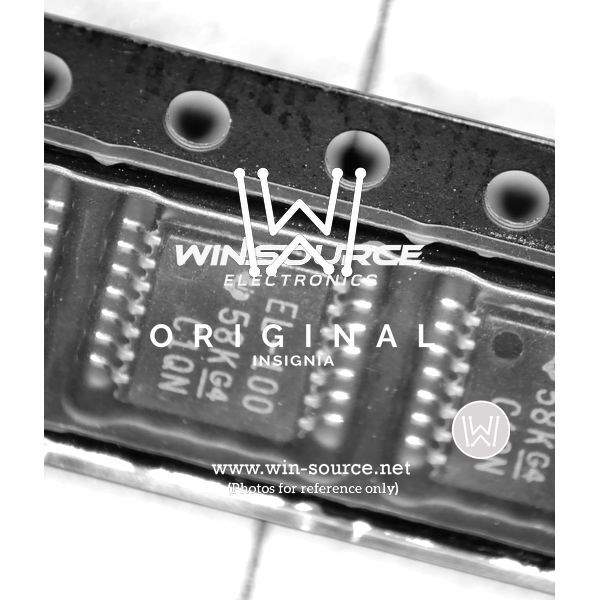

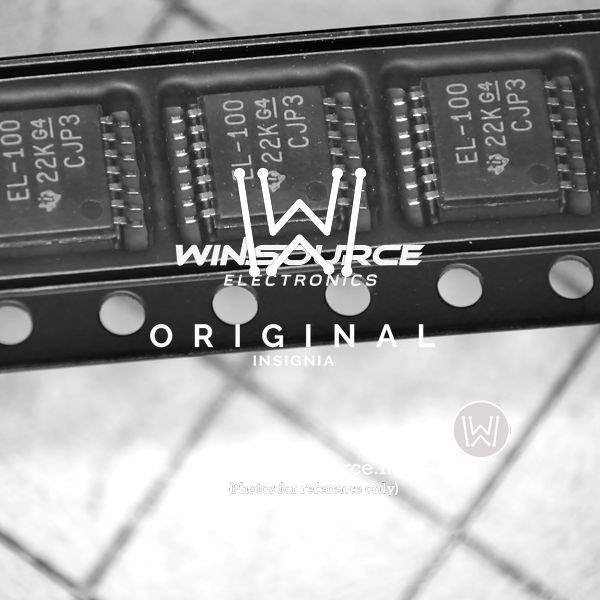

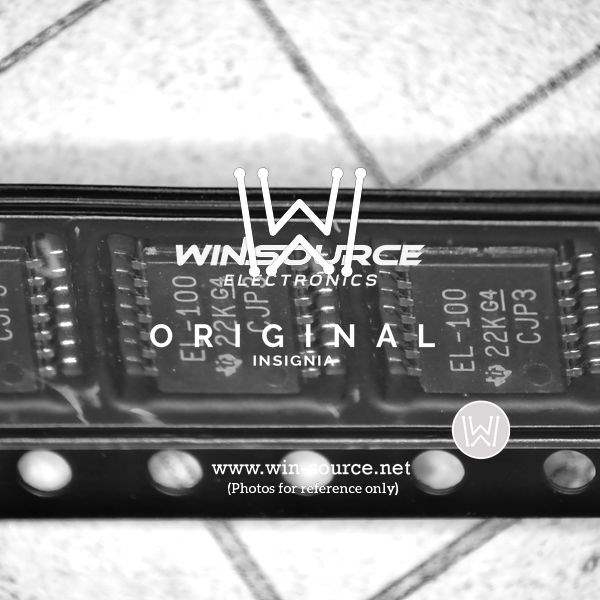

The TPL0102-100PWR is a state-of-the-art digital potentiometer designed and manufactured by Texas Instruments, a leader in semiconductor solutions. This device is part of the TPL series and is revered for its precision and reliability in various electronic applications. The TPL0102-100PWR is a dual-channel, 256-position, linear taper digital potentiometer with an I2C interface, making it ideal for adjusting and calibrating system parameters electronically.

Key Features

• Resolution: The TPL0102-100PWR boasts a high-resolution 256-position adjustment capability, allowing for fine-tuning with utmost precision.
• Dual-Channel: With two independent potentiometer channels, it offers versatile control options for various circuit designs.
• Non-Volatile Memory: It comes equipped with non-volatile memory (EEPROM) to store the wiper position, ensuring the settings are retained even after power cycling.
• Interface: The integrated I2C serial interface facilitates easy communication with microcontrollers, making it straightforward to integrate into digital systems.
• Power Supply: This component operates on a wide supply voltage range of 2.7V to 5.5V, compatible with most common logic levels and suitable for battery-operated devices.
• Endurance: The TPL0102-100PWR is designed for longevity with an endurance of 1 million cycles and data retention of 50 years at +55°C.

Applications

The TPL0102-100PWR is highly versatile and can be used in a wide array of applications. It is particularly useful in:

• Adjustable power supplies and voltage references
• Calibration systems for sensors and instrumentation
• Audio equipment for volume and tone control
• LED brightness control in lighting systems
• Automotive electronics for adjusting various parameters

Quality and Reliability

Texas Instruments is committed to delivering high-quality products. The TPL0102-100PWR is no exception, with rigorous testing and quality control measures ensuring its performance and durability. This digital potentiometer is a reliable solution for designers looking to add precise analog control within their digital systems.
