Texas Instruments - Digital Potentiometer

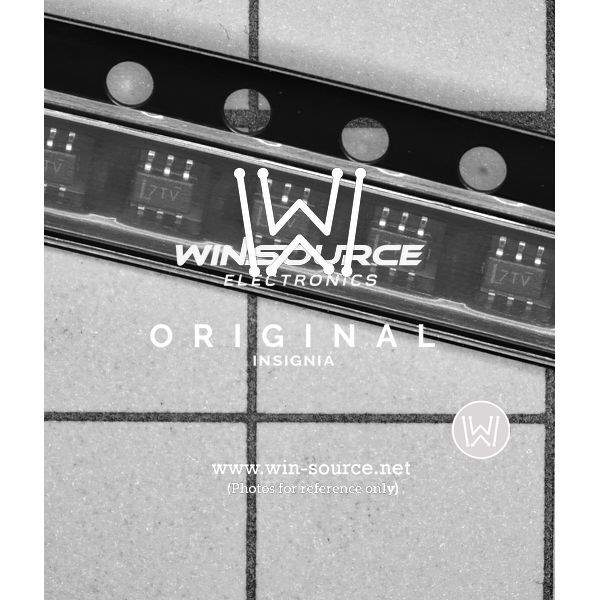

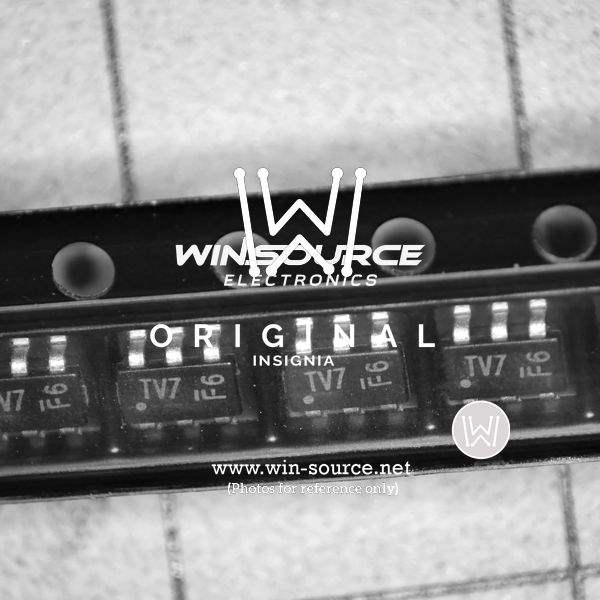

The TPL0401A-10DCKR is a single-channel, linear-taper digital potentiometer with 128 wiper positions. This compact device from Texas Instruments features a 10kΩ end-to-end resistance value and is designed to operate over a wide voltage range of 2.7V to 5.5V, making it versatile for various applications. With its small footprint, the TPL0401A-10DCKR is available in a space-saving 6-pin SC70 package, which is ideal for applications where board space is at a premium.

This digital potentiometer offers an I2C interface for communication, allowing for easy integration into most microcontroller-based systems. The device provides a simple solution for adjusting system parameters such as volume control, LCD screen brightness, or feedback loop adjustments without the need for mechanical potentiometers.

The TPL0401A-10DCKR is designed with reliability in mind, featuring non-volatile memory to retain the wiper position after power cycling, ensuring consistent performance across power interruptions. Additionally, the device boasts excellent temperature stability and a robust feature set that includes end-to-end resistance tolerance of ±20%, low wiper resistance, and high resistance to ESD events.

Key applications for the TPL0401A-10DCKR include consumer electronics, where precision and programmability are essential. It is also well-suited for personal electronics, portable battery-powered devices, and industrial control systems where digital adjustment is required for calibration or tuning purposes.

Texas Instruments provides comprehensive technical support for the TPL0401A-10DCKR, including detailed datasheets, application notes, and design resources to facilitate rapid development and integration into your product designs. The combination of features and support makes the TPL0401A-10DCKR a reliable and efficient choice for designers looking to incorporate digital potentiometers into their systems.
