Product Overview: TPS27S100BRRKR from Texas Instruments

The TPS27S100BRRKR is a robust, high-performance single-channel Smart High-Side Switch, designed and manufactured by Texas Instruments (TI), a leader in semiconductor solutions. This advanced power switch is ideal for driving resistive, inductive, and capacitive loads, making it a versatile choice for a wide range of applications, including automotive, industrial, and consumer electronics.

Key Features

• Wide Input Voltage Range: The device operates over a wide input voltage range from 3V to 40V, making it suitable for systems with varying supply voltages.
• High Continuous Current: It is capable of delivering up to 45A of continuous current, catering to applications that demand high power handling capabilities.
• Integrated Protection Features: The TPS27S100BRRKR includes smart protection features such as over-current, over-temperature, and electrostatic discharge (ESD) protection, enhancing system reliability and longevity.
• Diagnostic Feedback: With built-in diagnostic capabilities, the device provides feedback on load conditions and system faults, enabling predictive maintenance and system monitoring.
• Low Power Consumption: It has a low quiescent current, which minimizes power consumption when the switch is in the off state, contributing to energy efficiency.

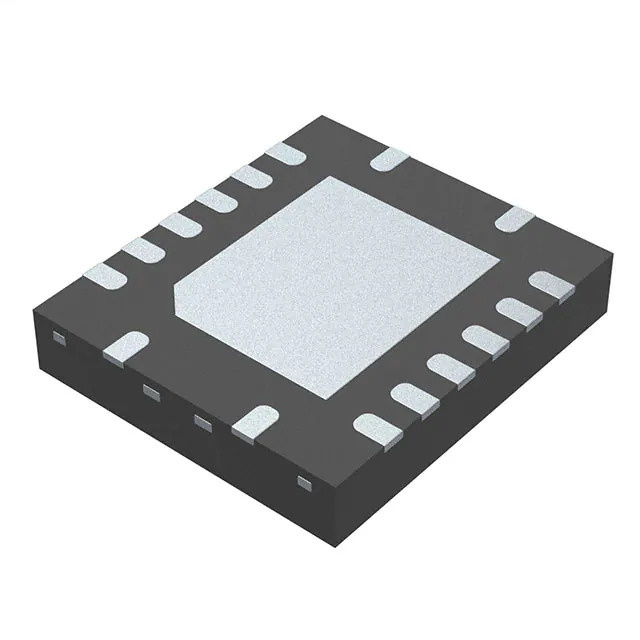

• Compact Package: The switch is available in a compact VQFN (Very Thin Quad Flat Non-Leaded) package, which is space-efficient and suitable for high-density PCB designs.

Applications

• Automotive systems such as lighting, motor control, and power distribution modules
• Industrial automation for controlling actuators, sensors, and other peripheral devices
• Consumer electronics that require controlled power distribution and management

The TPS27S100BRRKR from Texas Instruments is more than just a power switch; it is a sophisticated component engineered to meet the stringent demands of modern electronic systems. Its combination of high current capability, wide voltage range, and intelligent protection features make it a reliable and efficient solution for managing power in a variety of applications. By integrating the TPS27S100BRRKR into your design, you can expect improved system performance, enhanced safety, and a reduction in the overall complexity of power management tasks.
