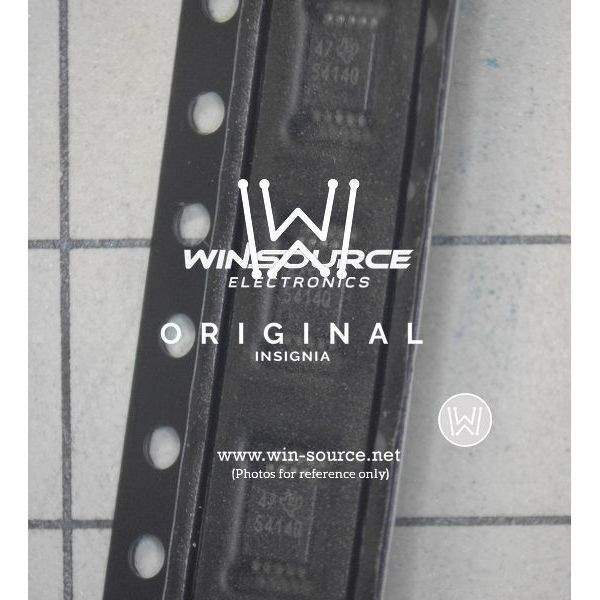

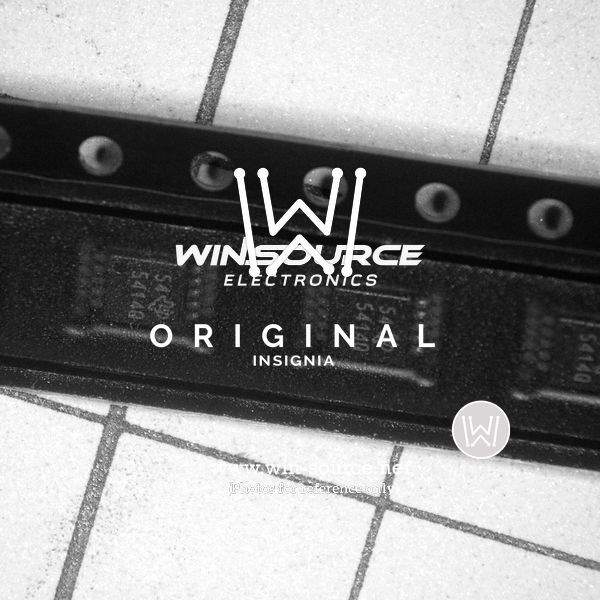

TPS54140QDGQRQ1 - Automotive 3.5V to 42V, 1.5A Step-Down Converter from Texas Instruments

The TPS54140QDGQRQ1 is a robust, automotive-grade, step-down converter designed by Texas Instruments to address the need for efficient power conversion in automotive and industrial applications. This highly integrated power solution is capable of converting a wide input voltage range from 3.5V to 42V to a lower, regulated voltage, making it an ideal choice for systems that are exposed to large voltage fluctuations, such as those found in automotive power systems.

With its capability to deliver up to 1.5A of continuous output current, the TPS54140QDGQRQ1 ensures reliable performance even under demanding conditions. The device operates at a fixed switching frequency of 570 kHz, which provides an optimal balance between efficiency and component size, allowing for the use of smaller, cost-effective inductors and capacitors. Moreover, the switching frequency can be adjusted from 200 kHz to 2.5 MHz with an external resistor, providing additional flexibility for designers to optimize the converter for specific application requirements.

The TPS54140QDGQRQ1 is designed with an array of features to enhance system reliability and performance. These include precision enable, undervoltage lockout, overcurrent protection, and thermal shutdown. Furthermore, the converter offers a high level of integration by incorporating an internal high-side MOSFET, which reduces the number of external components required and simplifies the design process.

For applications where electromagnetic interference (EMI) is a concern, the TPS54140QDGQRQ1 includes frequency spread spectrum, which helps minimize EMI by varying the switching frequency. This feature is particularly beneficial in automotive environments where compliance with stringent EMI standards is crucial.

Available in a compact, thermally enhanced 10-pin MSOP PowerPAD™ package, the TPS54140QDGQRQ1 is designed to withstand the harsh conditions of automotive applications, meeting the Q1-grade standards for high reliability. Its small footprint and high level of integration make it an excellent choice for space-constrained applications such as infotainment systems, automotive clusters, and advanced driver assistance systems (ADAS).

To aid in rapid prototyping and design verification, Texas Instruments provides comprehensive technical documentation, design tools, and simulation models, ensuring that the TPS54140QDGQRQ1 can be seamlessly integrated into a wide array of power management solutions.
