Product Overview: TPS54260DRCR from Texas Instruments

The TPS54260DRCR is a highly efficient, monolithic synchronous step-down DC-DC converter from Texas Instruments, designed to provide a robust power management solution for a wide range of applications. This versatile component delivers an adjustable output voltage that can be set from 0.8V to 90% of the input voltage, making it suitable for systems requiring a lower supply voltage from a higher voltage rail.

Key Features

• Wide Input Voltage Range: The TPS54260DRCR operates over a broad input voltage range of 3.5V to 60V, accommodating various power sources from intermediate bus voltages to batteries.
• High-Efficiency: With its integrated 200mΩ high-side MOSFET, the converter achieves up to 90% efficiency, which minimizes heat generation and improves system performance.
• Adjustable Switching Frequency: Users can adjust the switching frequency from 100kHz to 2.5MHz, allowing for flexibility in balancing efficiency and component size.
• Pulse Skipping Eco-Mode™: The Eco-Mode™ feature allows for reduced power consumption at light loads by skipping pulses, which enhances efficiency and extends battery life.
• Thermal and Overcurrent Protection: The device includes thermal shutdown and cycle-by-cycle current limiting, providing reliable operation and protection under abnormal conditions.

Applications

The TPS54260DRCR is ideal for a variety of applications, including:

• Industrial power systems
• Automotive infotainment and telematics
• Telecommunications equipment
• Point-of-load power supplies
• Distributed power systems

Package and Availability

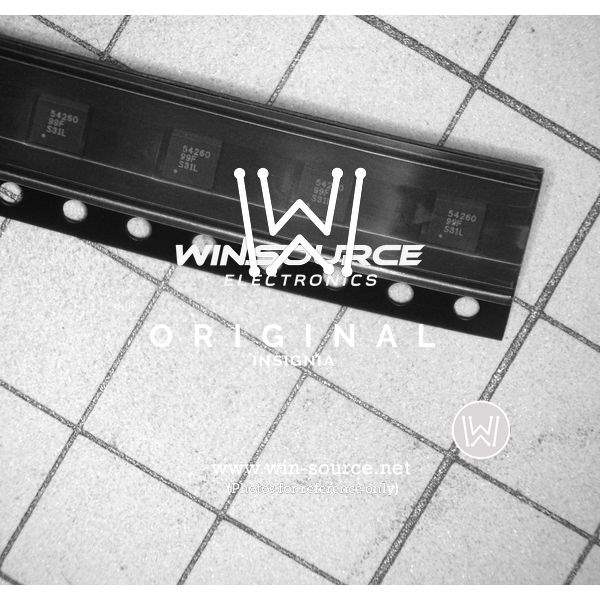

The TPS54260DRCR comes in a compact 10-pin VSON package with an exposed thermal pad for enhanced thermal performance. It is available for purchase through Texas Instruments and authorized distributors, providing a reliable source for both prototyping and mass production requirements.

Conclusion

With its extensive input voltage range, high efficiency, and versatile features, the TPS54260DRCR from Texas Instruments stands out as a powerful solution for modern DC-DC conversion needs. Its robust protection features and small footprint make it an excellent choice for designers looking to optimize power management in their next project.
