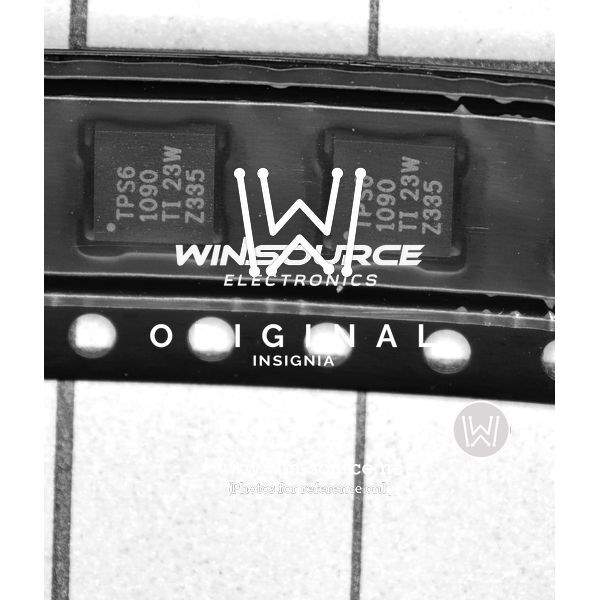

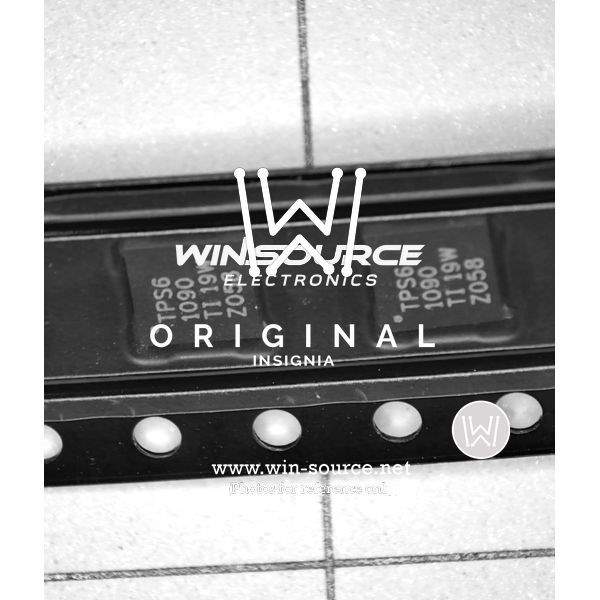

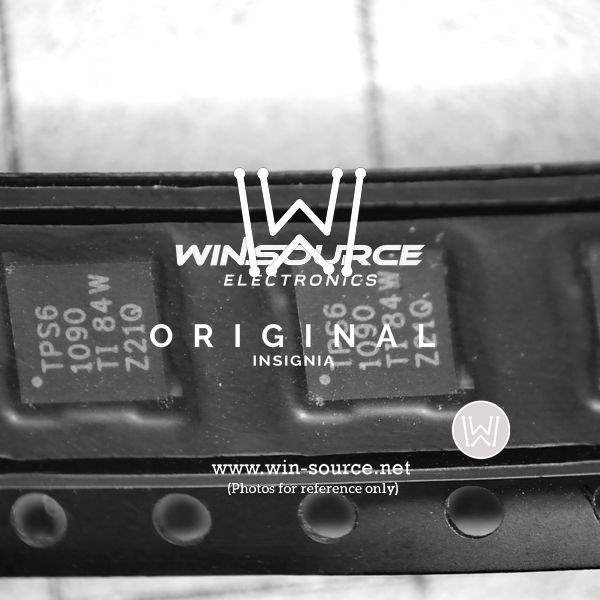

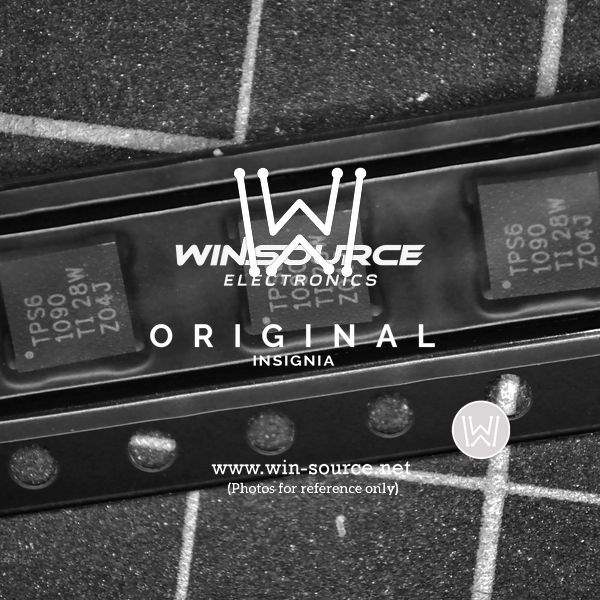

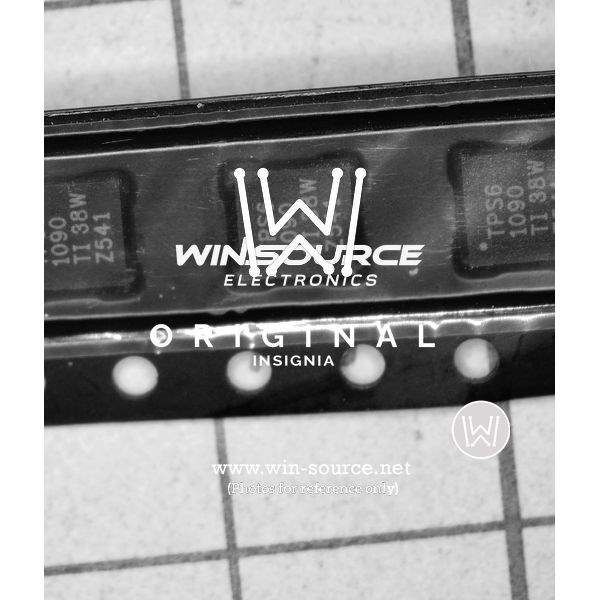

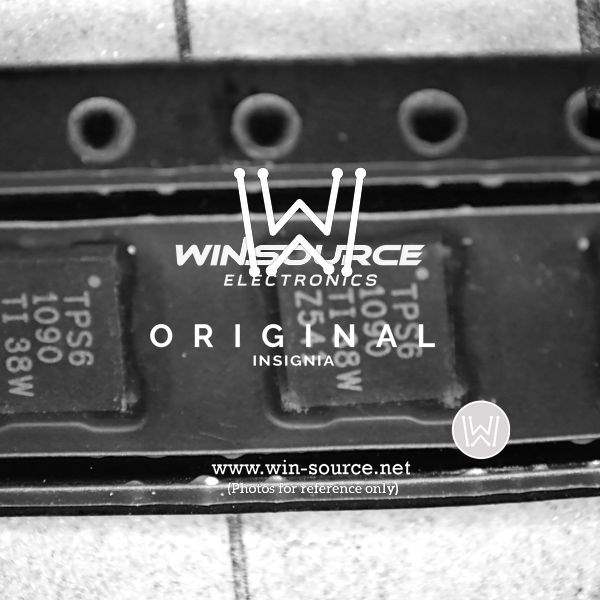

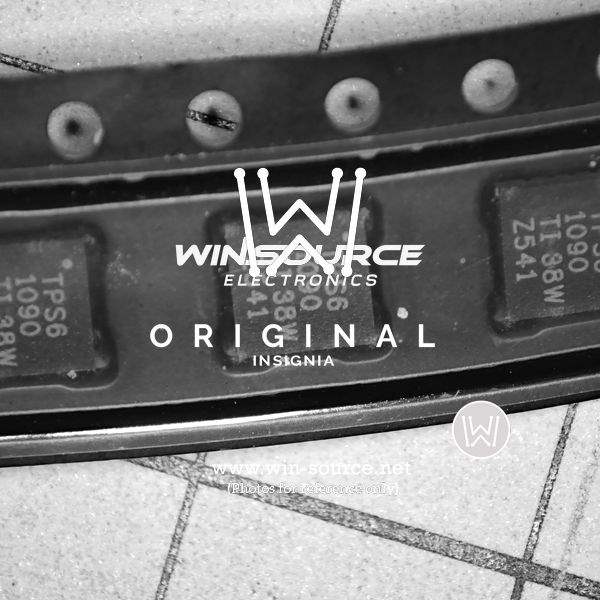

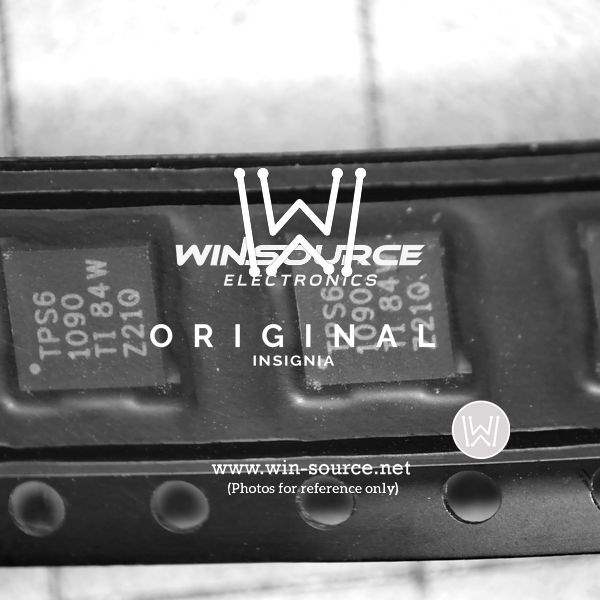

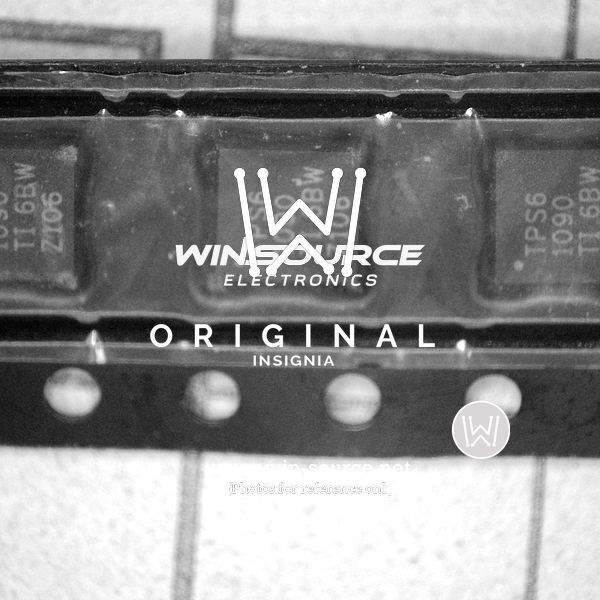

The TPS61090RSAR from Texas Instruments is a high-performance, fully integrated boost converter that is designed to provide a flexible and efficient power management solution for a wide range of applications. It is housed in a small 16-pin QFN package and is part of the TPS6109x family of switch-mode boost converters.

Key Features

• Adjustable Output Voltage: The TPS61090RSAR allows for an adjustable output voltage that can be set from 2.5V to 5.5V through an external resistor divider, making it highly versatile for different circuit requirements.
• High Efficiency: With a typical efficiency of up to 90%, this boost converter ensures minimal power loss during operation, leading to longer battery life and reduced heat generation.
• Integrated Power Switch: The device includes a 1.2A, 0.2Ω internal switch, which facilitates a compact design and simplifies the circuit layout.
• Wide Input Voltage Range: It operates from an input voltage range of 2.5V to 6V, accommodating a variety of power sources including single-cell Li-Ion batteries and 3V/5V system rails.
• Programmable Soft Start: The soft-start time can be programmed with an external capacitor, which reduces inrush current and provides a controlled voltage ramp-up.
• Protection Features: The TPS61090RSAR includes over-temperature and over-current protection, ensuring the longevity and reliability of the device under various operating conditions.

Applications

The versatile nature of the TPS61090RSAR makes it suitable for a broad array of applications, including but not limited to:

• Portable and battery-powered equipment
• Handheld devices such as smartphones and tablets
• Wireless peripherals and IoT devices
• Power banks and portable chargers
• LED lighting and smart lighting systems

Conclusion

Overall, the TPS61090RSAR boost converter from Texas Instruments stands out as a robust, efficient, and adaptable solution for designers looking to optimize power management in their products. Its comprehensive feature set and protection mechanisms ensure it can meet the needs of a diverse range of applications, maintaining performance and reliability.
