Overview of TPS62040DGQRG4

The TPS62040DGQRG4 is a highly efficient synchronous step-down DC/DC converter from Texas Instruments, designed to meet the power management needs of various applications. This component is part of the TPS62040 series, which is known for its compact size, high performance, and reliability.

Key Features

• High Efficiency: With an efficiency of up to 95%, this voltage regulator ensures minimal power loss during operation, making it suitable for battery-powered devices.
• Adjustable Output Voltage: The output voltage is adjustable from 1.2V to 2.5V, which allows for flexible use in different circuit designs.
• Load Capability: It can deliver up to 600mA of continuous output current, which is adequate for a wide range of low-power applications.
• Low Dropout Operation: Its low dropout feature enables the converter to continue to regulate the output voltage even when the input-to-output voltage differential is very small.
• Operating Frequency: The device operates at a fixed frequency of 1.2MHz, allowing the use of small surface mount inductors and capacitors, which saves board space and reduces overall solution size.

Applications

The TPS62040DGQRG4 is ideal for portable and battery-powered applications due to its power efficiency and compact footprint. It is commonly used in:

• Smartphones and PDAs
• Wireless LAN and Bluetooth™ devices
• Digital cameras and audio devices
• Portable medical equipment

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the TPS62040DGQRG4 is no exception. It is designed to meet the rigorous standards required by the industry, ensuring both consistent performance and reliability. Additionally, the device features thermal shutdown and overcurrent protection, safeguarding your application from potential damage due to overheating or excessive current conditions.

Package and Availability

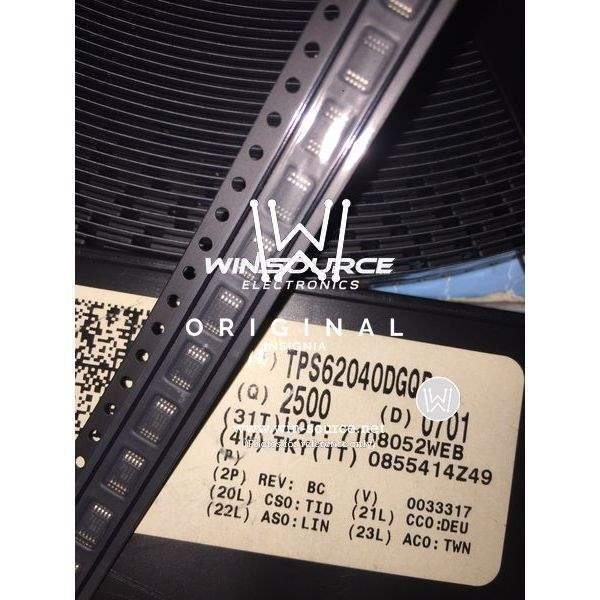

The TPS62040DGQRG4 comes in a small, lead-free, thermally enhanced MSOP-10 PowerPAD™ package, which is designed for optimal thermal performance and space-saving on the PCB. It is available through Texas Instruments and authorized distributors, ensuring easy accessibility for designers and manufacturers.
