Product Overview: TPS62304YZDR by Texas Instruments

The TPS62304YZDR is a highly efficient, synchronous step-down DC-DC converter designed by Texas Instruments (TI), a leader in semiconductor solutions. This advanced power management integrated circuit (IC) is tailored to meet the stringent power requirements of battery-powered devices such as smartphones, tablets, and portable media players, as well as various industrial and medical applications.

The TPS62304YZDR operates at a fixed frequency of 3MHz, which allows for the use of small, low-cost inductors and capacitors, resulting in a compact power supply solution with minimal footprint. The device supports an input voltage range from 2.5V to 5.5V, making it versatile for various system power rails and battery technologies, including Li-Ion and Li-Polymer.

With its high-efficiency and low-quiescent current design, the TPS62304YZDR extends battery life by minimizing power losses during operation. It is capable of delivering up to 500mA of continuous output current while maintaining excellent load and line regulation. The converter's efficiency is further optimized with its Power Save Mode, which enhances performance at light loads.

TI has integrated several protective features into the TPS62304YZDR to ensure reliable operation under adverse conditions. These include over-temperature protection, under-voltage lockout (UVLO), and a thermal shutdown mechanism. Additionally, the device incorporates a soft-start feature to reduce inrush current during startup, contributing to system stability.

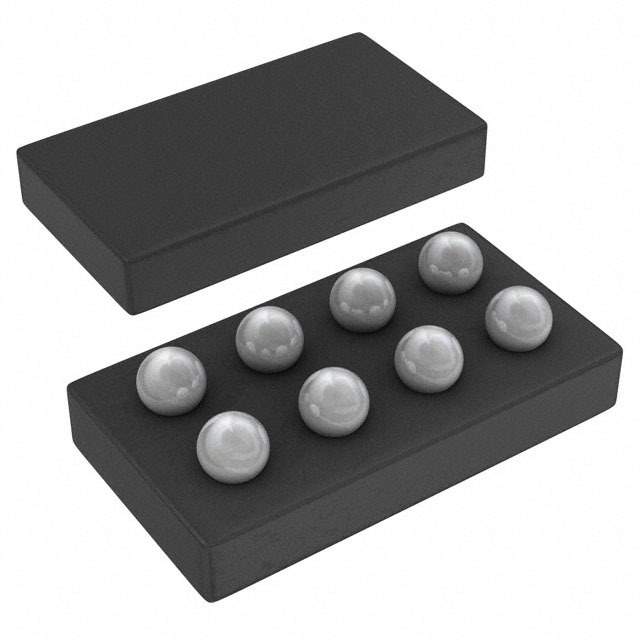

The TPS62304YZDR comes in a compact 8-ball chip scale package (CSP), which is highly suitable for space-constrained applications. Its small size, combined with high power efficiency, makes it an excellent choice for designers looking to optimize their power management solutions without compromising on performance or space.

With the TPS62304YZDR, Texas Instruments continues to demonstrate its commitment to providing innovative, high-quality power management solutions that meet the evolving needs of modern electronic devices.
