Product Overview: TPS62480RNCT by Texas Instruments

The TPS62480RNCT is a high-efficiency, dual-channel, synchronous step-down converter integrated circuit (IC) manufactured by Texas Instruments (TI). This advanced power solution is designed to meet the power management needs of a wide range of applications, including portable devices, networking equipment, and embedded systems that require efficient voltage regulation and a compact footprint.

Key Features

• Wide Input Voltage Range: The TPS62480RNCT operates with an input voltage range of 2.5V to 6V, making it suitable for systems powered by Li-Ion batteries or 5V input rails.
• Dual-Channel Output: This IC provides two independent output channels with adjustable output voltages down to 0.6V, allowing for simultaneous powering of different components within a system.
• High Efficiency: With up to 95% efficiency, the converter ensures minimal power loss during operation, contributing to extended battery life in portable applications.
• Switching Frequency: The device features a 2.25MHz fixed switching frequency, which enables the use of small external components, reducing the overall solution size.
• Power Save Mode: For improved efficiency at light loads, the TPS62480RNCT includes a power save mode that reduces switching losses.
• Thermal and Overcurrent Protection: Built-in thermal shutdown and overcurrent protection safeguard the IC from damage due to excessive heat or current conditions.

Applications

The TPS62480RNCT is versatile and can be used in multiple applications that require efficient power conversion and a small solution size. Some typical applications include:

• Smartphones, Tablets, and Portable Media Players
• Wireless and DSL Modems
• Portable and Battery-Powered Equipment
• Point-of-Load Conversions in Networking and Storage Systems
• Embedded Computing

Package and Quality

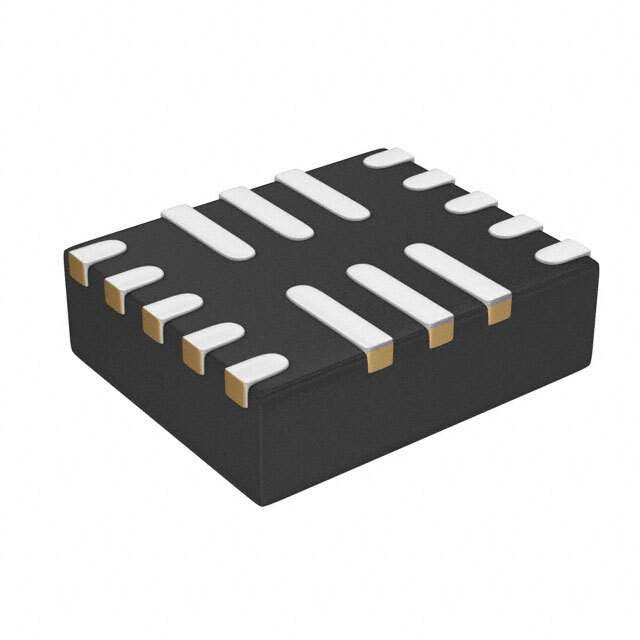

The TPS62480RNCT comes in a compact 16-pin QFN package and is characterized for operation over a junction temperature range of -40°C to 85°C. Texas Instruments' commitment to quality ensures that this product meets the stringent requirements of the industry, providing reliable and consistent performance for critical applications.

With its combination of dual-channel flexibility, high efficiency, and compact design, the TPS62480RNCT from Texas Instruments stands out as an excellent choice for designers looking to optimize their power management solutions.
