Product Overview: TPS73701DCQR by Texas Instruments

The TPS73701DCQR is a high-performance, low-dropout (LDO) voltage regulator from the renowned semiconductor manufacturer, Texas Instruments (TI). This device is specifically designed to deliver a stable and precise voltage supply, making it an ideal choice for sensitive electronic applications that require a consistent power source. The TPS73701DCQR is part of TI's extensive range of power management integrated circuits, which are known for their reliability and efficiency.

Key Features

• Output Voltage Range: The TPS73701DCQR offers an adjustable output voltage range from 1.2V to 5.5V, providing versatility for various design requirements.
• High Accuracy: With an accuracy of 1% over the full temperature range, this LDO ensures a precise voltage supply for critical components.
• Low Dropout: The low dropout voltage of typically 230mV at full load (1A) minimizes power loss and improves efficiency in the system.
• Stable with Low-ESR Output Capacitors: The device is stable with ceramic capacitors as low as 10μF, reducing the size and cost of the overall power supply design.
• Thermal and Overcurrent Protection: Built-in thermal shutdown and overcurrent protection features safeguard the device and the system from potential damage due to overheating or excessive current draw.

Applications

The TPS73701DCQR is suited for a wide range of applications, including but not limited to:

• Portable and battery-powered devices
• Wireless communication systems
• Data acquisition systems
• Medical equipment
• Consumer electronics

Package and Quality

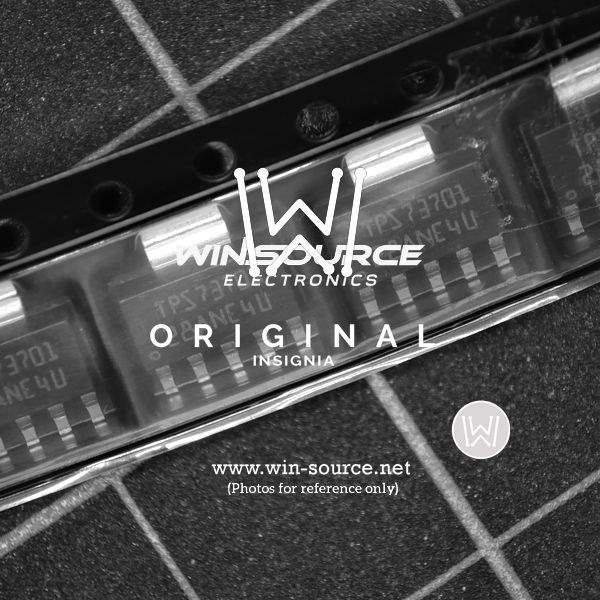

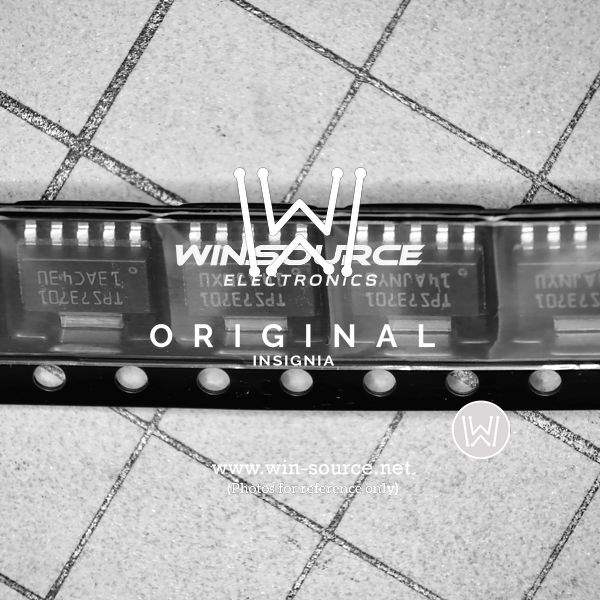

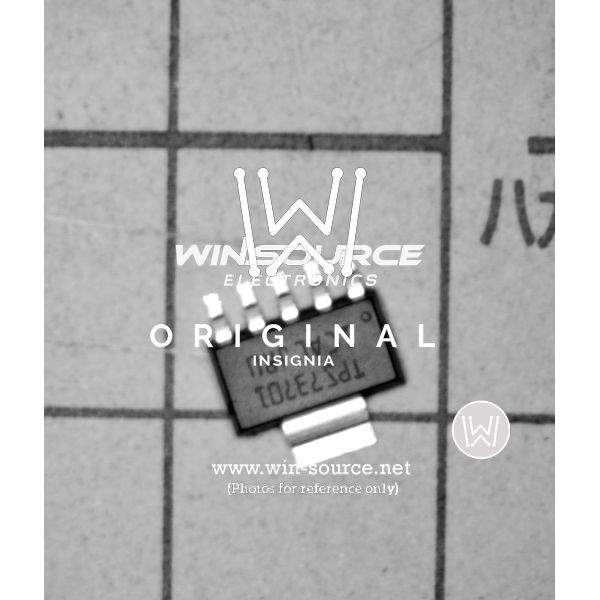

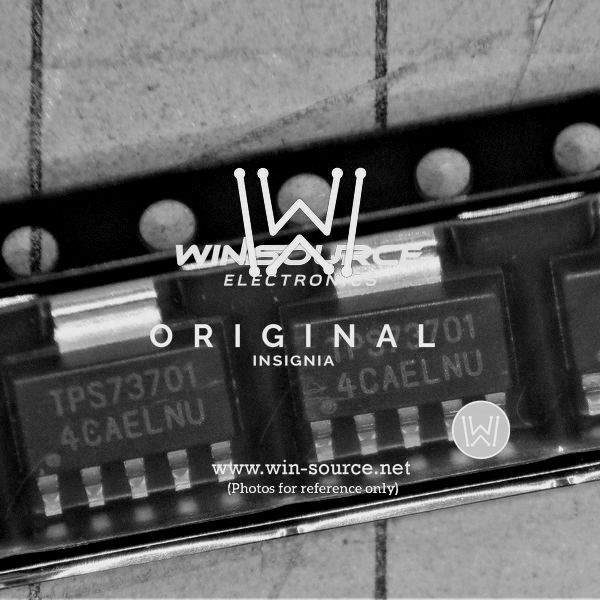

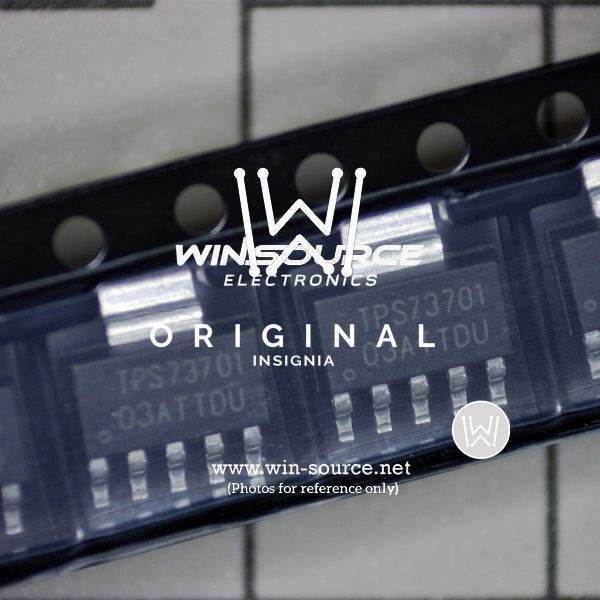

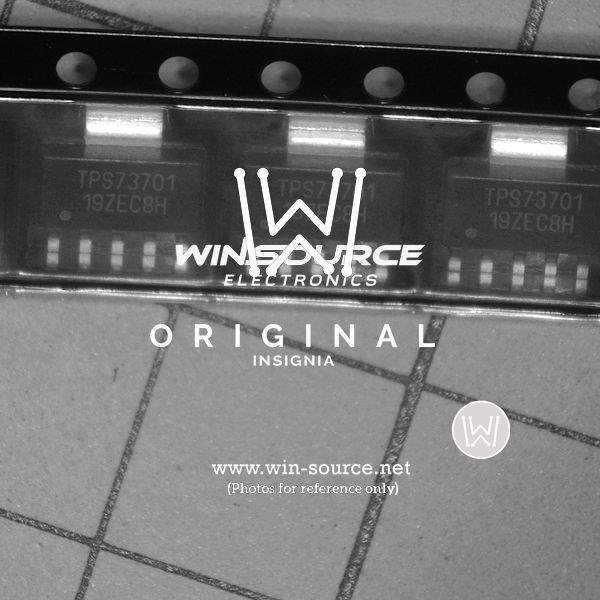

The TPS73701DCQR comes in a compact SOT-223 package, which is ideal for space-constrained applications. It is also RoHS compliant and supports a commercial temperature range of -40°C to 85°C, ensuring robust performance in various environments. Texas Instruments is committed to delivering high-quality products, and the TPS73701DCQR is no exception, meeting stringent industry standards for performance and reliability.

Overall, the TPS73701DCQR LDO voltage regulator is a testament to Texas Instruments' dedication to providing advanced power management solutions that cater to the evolving needs of modern electronics.
