The TPS76301DBVR from Texas Instruments is a highly efficient, low-dropout (LDO) voltage regulator designed to deliver a fixed or adjustable output from an input voltage supply. This regulator is capable of providing up to 150mA of output current while maintaining a low 85µA (typical) quiescent current, making it an excellent choice for battery-operated and low-power applications.

Key Features:

• Output Voltage Range: The TPS76301DBVR offers an adjustable output voltage range from 1.2V to 10V, allowing for customization to meet specific application requirements.
• High Accuracy: This device provides excellent regulation with a typical output voltage accuracy of ±2%.
• Low Dropout Voltage: It features a low dropout voltage, typically 200mV at 150mA load, which enhances efficiency and allows operation closer to the input voltage.
• Thermal and Overcurrent Protection: The regulator includes built-in thermal shutdown and current limit features to protect against excessive temperature and current conditions.
• Low Quiescent Current: With a typical quiescent current of 85µA, the TPS76301DBVR is optimized for battery-powered devices, where power conservation is critical.

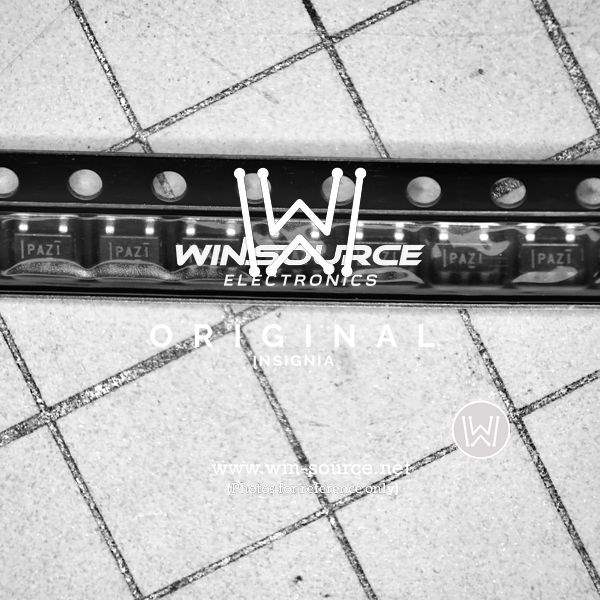

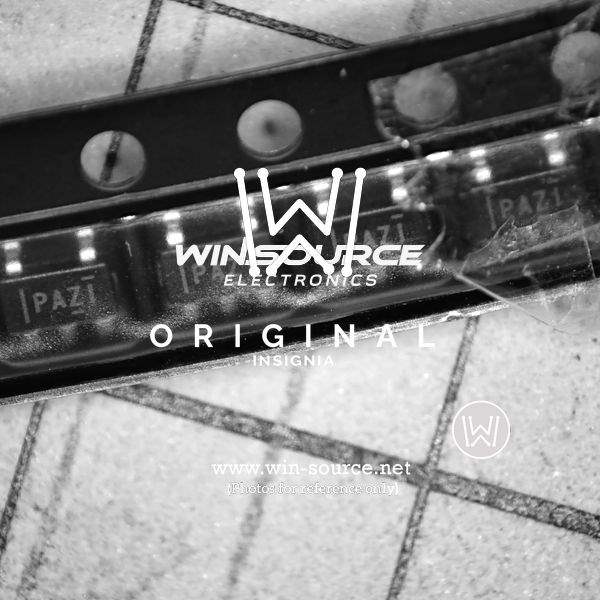

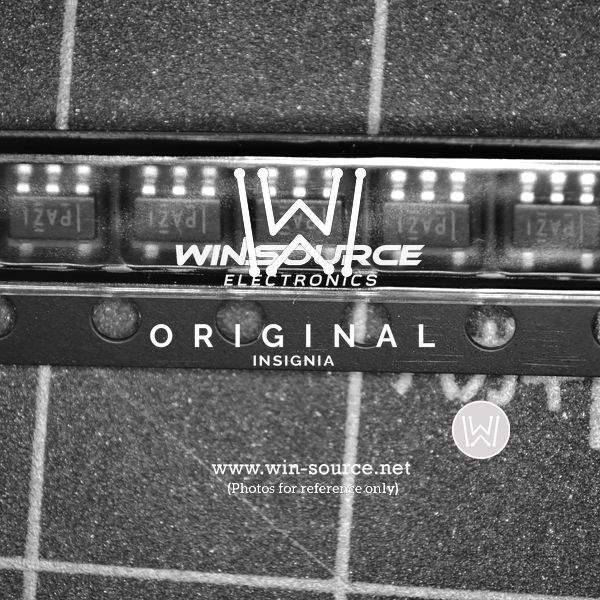

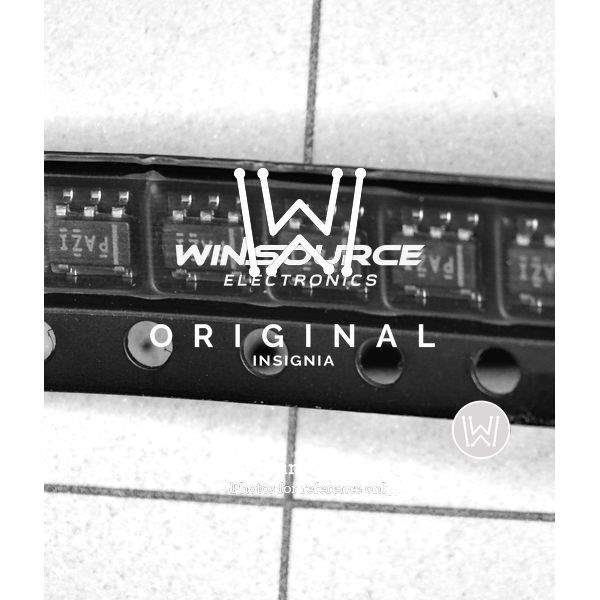

• Small Package Size: The device is available in a compact SOT-23-5 package, making it suitable for space-constrained applications.

Applications:

The TPS76301DBVR is versatile and can be used in various applications, such as:

• Portable electronics
• Battery-powered devices
• Wireless communication systems
• Power supplies for DSPs, MCUs, and FPGAs

Quality and Reliability:

Texas Instruments is known for its commitment to quality and reliability, and the TPS76301DBVR is no exception. This voltage regulator is designed to meet the stringent requirements of industrial and commercial applications, ensuring long-term performance and stability.

Ordering Information:

To purchase the TPS76301DBVR, you can visit authorized Texas Instruments distributors or order directly from the TI website. The device's full part number, including the package type and orderable quantity, is essential for accurate ordering.
