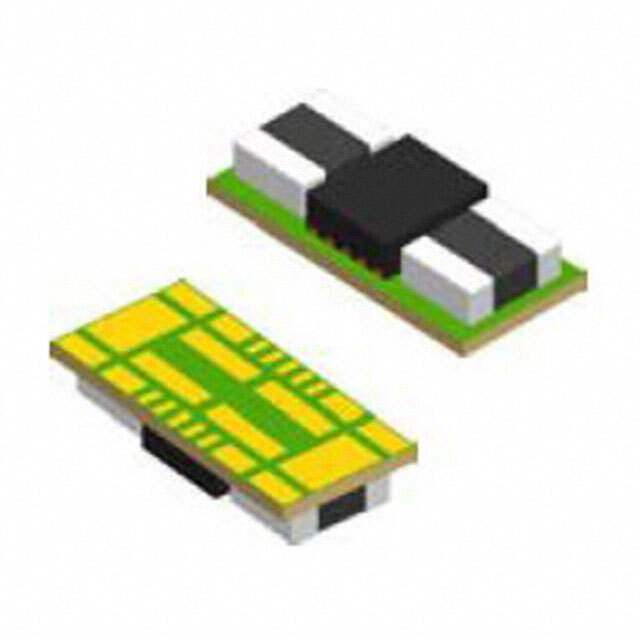

TPSM82480MOPT

Part No TPSM82480MOPT
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 0.6-5.5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Texas Instruments
Series TPSM
Package Tape & Reel
Product Status Active
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 2.4V
Voltage - Input (Max) 5.5V
Voltage - Output 1 0.6 ~ 5.5V
Current - Output (Max) 6A
Applications ITE (Commercial)
Features OCP, OTP, SCP, UVLO
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 24-SMD Module
Size / Dimension 0.31" L x 0.14" W x 0.06" H (7.9mm x 3.6mm x 1.6mm)
Supplier Device Package 24-QFM (7.9x3.6)
Base Product Number TPSM82480
Standard Package 250 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 937464-TPSM82480MOPT
Ultra Librarian 3D Model Ultra Librarian TPSM82480MOPT CAD Model

Description

Overview of TPSM82480MOPT

The TPSM82480MOPT is a state-of-the-art, integrated power solution module from Texas Instruments (TI), designed to cater to a wide range of applications requiring efficient power management. This module combines two low-noise, step-down power converters in a single package, offering exceptional performance and ease of use.

Key Features

  • Dual-Output: The device includes two independent power channels, capable of delivering up to 4A of continuous current each, which can be combined to provide up to 8A if needed.
  • Wide Input Voltage Range: It operates with an input voltage range from 2.4V to 5.5V, making it versatile for various systems and battery technologies.
  • Adjustable Output Voltage: The output voltage can be adjusted between 0.6V to 3.3V, allowing for a high level of flexibility to meet the needs of different applications.
  • High Efficiency: The module boasts high efficiency across the entire load range, which is vital for prolonging battery life in portable applications.
  • Compact Design: With a small footprint measuring just 3mm x 2.8mm, the TPSM82480MOPT is ideal for space-constrained applications.
  • Integrated Inductors: The inclusion of integrated inductors simplifies design and reduces external component count, leading to faster design cycles and reduced system complexity.
  • Power Good Output: This feature provides a power good signal when the output voltage is within the regulation limits, which is crucial for power sequencing and monitoring in complex systems.

Applications

The TPSM82480MOPT is suited for a broad range of applications, including but not limited to:

  • Portable and battery-powered devices
  • Wireless infrastructure
  • Industrial equipment
  • Networking and telecom systems
  • Enterprise computing and storage systems

Reliability and Support

TI is known for its commitment to quality and reliability, and the TPSM82480MOPT is no exception. It is designed to meet the rigorous standards required by industrial and commercial applications. Additionally, Texas Instruments provides comprehensive technical support and resources, including datasheets, reference designs, and simulation tools, to assist engineers in integrating this power module into their designs seamlessly.

With its combination of performance, integration, and convenience, the TPSM82480MOPT is an excellent choice for designers looking to optimize their power management solutions with a reliable and high-performance module.
