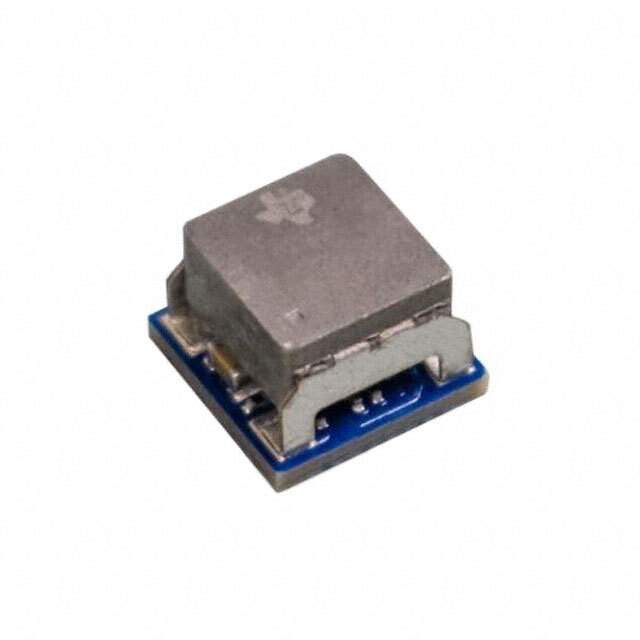

The TPSM84824MOLR is a highly integrated power solution from Texas Instruments, designed to simplify the power supply design for a wide range of applications. This compact power module integrates a synchronous step-down (buck) regulator with inductors, capacitors, and resistors to offer a complete power management system in a small, low-profile package.

Key Features

• Wide Input Voltage Range: The module supports an input voltage range of 4.5V to 17V, making it versatile for various applications from industrial to consumer electronics.
• High-Efficiency: With its integrated components and advanced design, the TPSM84824MOLR provides high-efficiency power conversion, which can help reduce power loss and improve overall system performance.
• Adjustable Output Voltage: The output voltage is adjustable from 0.6V to 10V, allowing for a high degree of flexibility to power different ICs and peripherals.
• Compact Size: The module comes in a small 3.5mm x 3.5mm x 1.5mm QFN package, which is ideal for space-constrained applications.
• Integrated Inductor: The inclusion of an integrated inductor simplifies design and reduces external component count, which can help speed up the design process and reduce overall system size.
• Thermal Performance: The TPSM84824MOLR is designed with excellent thermal performance in mind, ensuring reliable operation even in environments with limited airflow or higher temperatures.

Applications

The module's versatility allows it to be used in a variety of applications, including:

• Telecommunications Equipment
• Networking Equipment
• Enterprise and Storage Systems
• Industrial Controls
• Point-of-Load Conversions

Design Support

Texas Instruments provides extensive design support for the TPSM84824MOLR, including technical documentation, reference designs, and simulation tools to assist engineers in integrating this power module into their designs efficiently and effectively.
