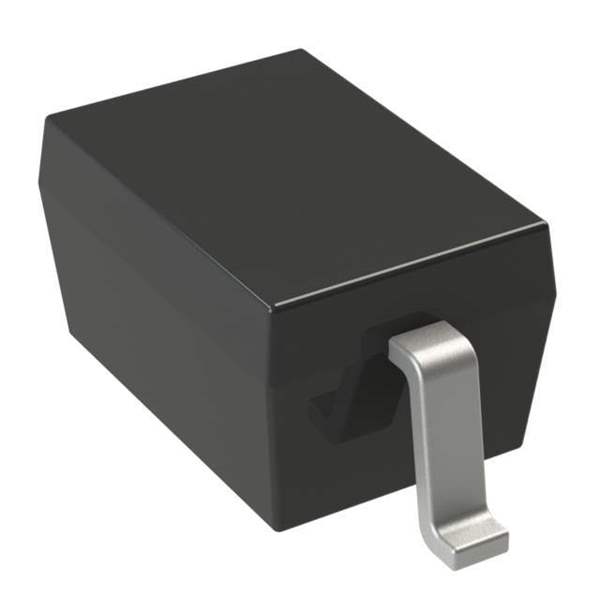

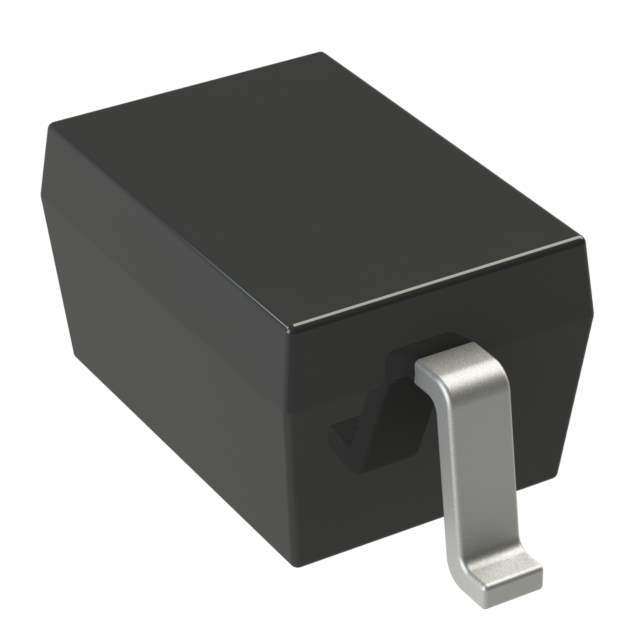

TSD05DYFR Texas Instruments
Same model may have multiple batches, images only for reference.

TSD05DYFR

Part No TSD05DYFR
Manufacturer Texas Instruments
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM 9VC SOD-323
Datasheet
TSD05DYFR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1309420-TSD05DYFR
Category Circuit Protection >Transient Voltage> Suppressors (TVS) TVS Diodes
Mfr Texas Instruments
Packaging Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5.5V (Max)
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 9V (Typ)
Current - Peak Pulse (10/1000µs) 60A (8/20µs)
Ultra Librarian 3D Model Ultra Librarian TSD05DYFR CAD Model

Description

The TSD05 is a unidirectional TVS protection diode designed for clamping harmful transients such as ESD and surge. The TSD05 is rated to dissipate ESD strikes up to ±30 kV (contact and air gap discharge) and also meets the maximum level specified in the IEC 61000-4-2 international standard (Level 4). for surges, the device can clamp 8/20 μs surges with peak currents up to 60 A in accordance with the IEC 61000-4-5 standard.
