Product Overview: UA78L05ACD Voltage Regulator

The UA78L05ACD from Texas Instruments is a fixed-voltage integrated circuit voltage regulator designed to offer thermal overload protection and safe operating area protection, which in turn ensures longevity and reliability. This regulator can deliver up to 100mA of output current with a fixed output voltage of 5V, making it an ideal choice for small power applications.

Key Features

• Output Voltage: Precisely regulated 5V output, suitable for a wide range of electronic devices and applications.
• Output Current: Capable of supplying a maximum of 100mA, perfect for low-power operations.
• Thermal Protection: Integrated thermal shutdown feature prevents damage from overheating.
• Safe Operating Area Protection: Limits the output current and dissipation to safe levels, ensuring the regulator does not fail under extreme conditions.
• Voltage Accuracy: Maintains high accuracy with a deviation of only ±4% maximum over line, load, and temperature variations.
• Low Dropout: Functions efficiently with a minimal difference between the input and output voltages.

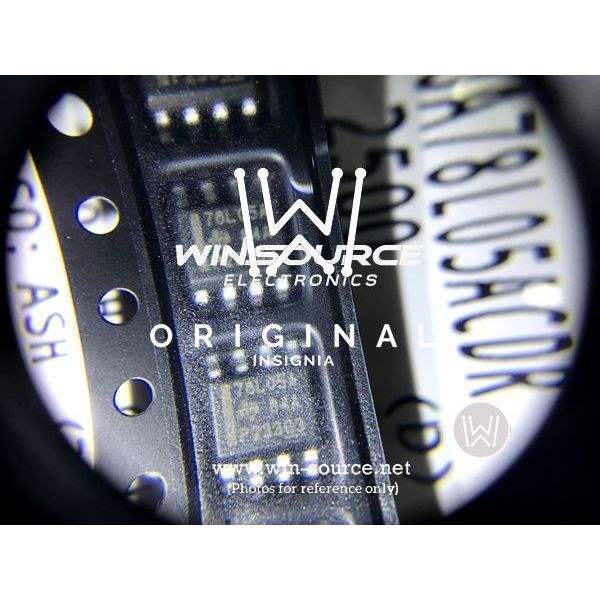

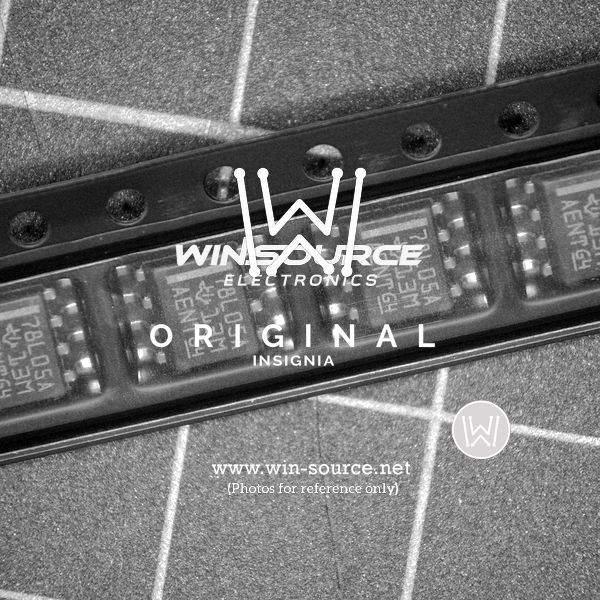

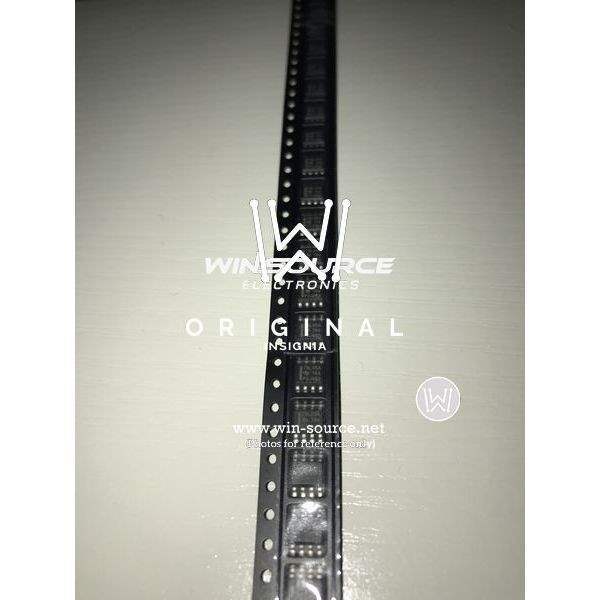

• Package: Available in an 8-pin SOIC package that is both compact and easy to integrate into various circuit designs.

Applications

The UA78L05ACD is versatile and can be used in a multitude of applications, including:

• Battery-powered devices
• Consumer electronics
• Portable instrumentation
• Small home appliances
• Linear power supplies

Why Choose the UA78L05ACD?

For designers and engineers looking for a reliable and efficient voltage regulation solution, the UA78L05ACD stands out with its combination of protection features, stable output, and ease of use. Its small footprint and ease of integration make it an excellent choice for space-constrained applications. Texas Instruments' commitment to quality ensures that this voltage regulator will provide a stable power supply, contributing to the overall performance and longevity of your electronic devices.
