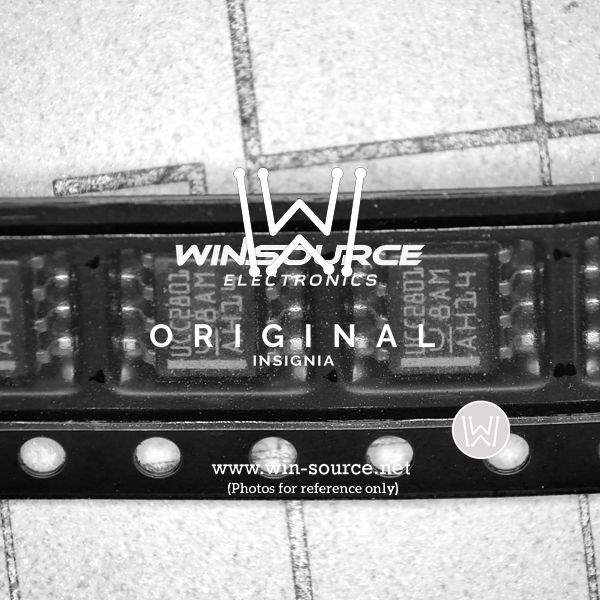

Product Overview: Texas Instruments UCC2801DTR

The UCC2801DTR from Texas Instruments is a versatile and efficient low-power BiCMOS current-mode pulse-width modulation (PWM) controller. This device is specifically designed to cater to a wide array of power supply applications, particularly those requiring a low startup current and high efficiency. The UCC2801DTR is part of TI's UCC28C series, which is renowned for its reliability and performance in controlling switch-mode power supplies.

With a startup current of less than 100µA, the UCC2801DTR is an ideal choice for battery-operated devices, ensuring minimal power consumption during the initial power phase. This feature also makes it suitable for "green" electronics that demand energy efficiency. The operating current is also notably low, at typically 2.5mA, further contributing to the overall energy-saving profile of the device.

The UCC2801DTR operates with a supply voltage range of 4V to 15V, providing flexibility for various design requirements. It includes an automatic feed-forward compensation feature, which enhances performance across different input voltages and output loads. This ensures stable operation and a consistent output, regardless of fluctuations in the input supply or variations in the load.

Safety features are integral to the UCC2801DTR, with built-in overcurrent protection through the current sense comparator. This helps prevent damage to the device and other components in the event of a current overload. Additionally, the controller offers an undervoltage lockout (UVLO) with hysteresis, ensuring the device operates only when the supply voltage is within an acceptable range.

The UCC2801DTR comes in a small-outline transistor (SOT) package, specifically the 8-pin SOIC (D) package, making it compact and easy to integrate into space-constrained applications. Its operating temperature range from -40°C to +85°C guarantees stability across various environmental conditions.

In summary, the Texas Instruments UCC2801DTR PWM controller is a high-performance solution for designers looking to enhance the efficiency and reliability of their power supply circuits, while also prioritizing energy conservation and device protection.
