Product Overview: UCC28950QPWRQ1 from Texas Instruments

The UCC28950QPWRQ1 is a state-of-the-art phase-shifted full-bridge controller with dual outputs, designed and manufactured by Texas Instruments, a leader in semiconductor solutions. This advanced controller is specifically tailored for automotive applications and is AEC-Q100 qualified, ensuring reliability and performance under the rigorous conditions of the automotive environment.

At the heart of the UCC28950QPWRQ1 is its innovative control method which allows for zero-voltage switching (ZVS) over a wide range of load conditions, significantly improving efficiency by reducing switching losses. This feature is particularly important in automotive applications where efficiency and power conservation are critical.

The device supports a wide input voltage range and is capable of producing a regulated output with high efficiency, making it suitable for a variety of DC-DC conversion applications in vehicles, such as powertrain systems, infotainment, and advanced driver assistance systems (ADAS).

Key features of the UCC28950QPWRQ1 include:

• Advanced control features for enhanced power efficiency and reduced electromagnetic interference (EMI).
• Adaptive zero-voltage switching (ZVS) across a wide load range.
• Frequency synchronization capability to minimize system disturbances.
• Integrated soft-start function for smooth power-up sequences.
• Robust protection features such as overcurrent, overvoltage, and thermal shutdown to safeguard the system under fault conditions.
• Extended temperature range suitable for automotive environments.

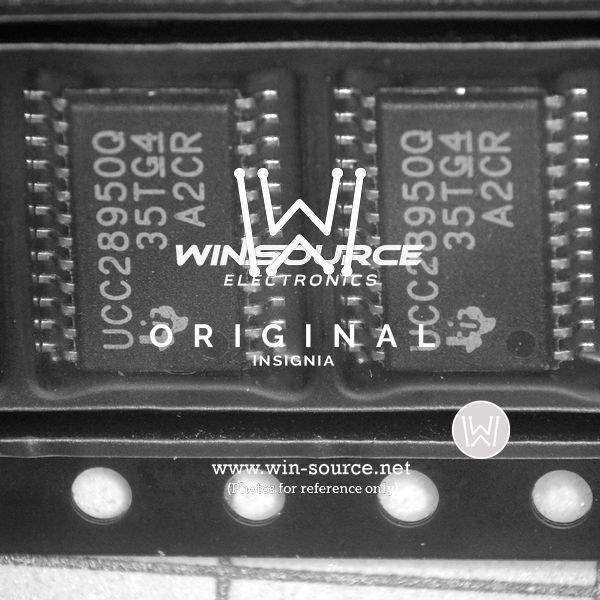

This controller comes in a 20-pin TSSOP (Thin Shrink Small Outline Package) with PowerPAD™ for enhanced thermal performance. The UCC28950QPWRQ1's compact form factor and feature set make it an excellent choice for designers looking to optimize power management in their next-generation automotive applications.

With the UCC28950QPWRQ1, Texas Instruments continues to demonstrate its commitment to innovation, offering a product that not only meets the stringent requirements of the automotive industry but also helps to push the boundaries of power conversion technology.
