The UCD74111RVFT from Texas Instruments is a highly efficient, low-side driver designed to control N-channel MOSFETs or IGBTs in a variety of applications. This advanced driver IC is ideal for high-speed switching applications, providing robust operation and enhanced performance characteristics that make it a suitable choice for power management solutions.

Key Features

• High Drive Current: The UCD74111RVFT offers a peak output current of up to 4A, ensuring that it can drive large MOSFETs or IGBTs with ease.
• Fast Propagation Delays: With its swift response times, this low-side driver minimizes propagation delays, which is crucial for high-frequency switching applications.
• Wide Supply Voltage Range: It operates over a supply voltage range of 4.5V to 18V, making it versatile for various circuit configurations.
• Robust Output Stage: The output stage is designed to withstand negative voltage transients, enhancing the durability and reliability of the device.
• Protection Features: The UCD74111RVFT includes under-voltage lockout (UVLO) and thermal shutdown features to protect the device under adverse conditions.

Applications

The UCD74111RVFT is suited for a wide range of applications, particularly where efficient and reliable low-side switching is required. Some of the common applications include:

• DC/DC converters
• Motor controllers
• Power distribution systems
• LED lighting
• Class-D audio amplifiers

Technical Specifications

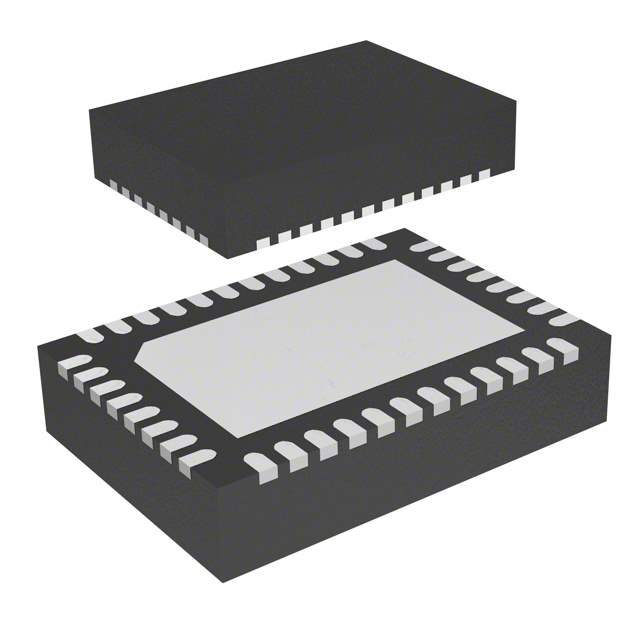

The UCD74111RVFT is available in a compact, surface-mount package and is RoHS compliant, reflecting Texas Instruments' commitment to environmental sustainability. With its combination of high performance, robust protection features, and wide applicability, the UCD74111RVFT is an excellent choice for designers looking to optimize their power management systems.
