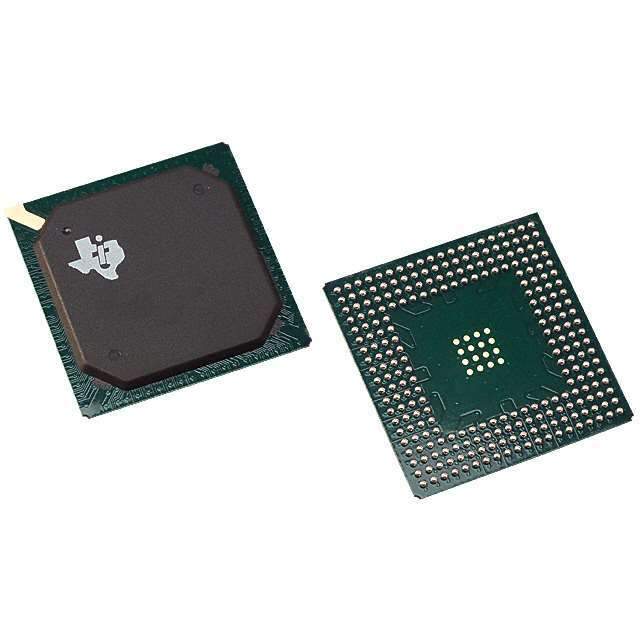

XOMAPL137DZKBA3

Part No XOMAPL137DZKBA3
Manufacturer Texas Instruments
Catalog Embedded - Microprocessors
Description IC MPU OMAP-L1X 375MHZ 256BGA / ARM926EJ-S Microprocessor IC series 1 Core, 32-Bit 375MHz 256-BGA (17x17)
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications

Category Integrated Circuits (ICs)>Embedded - Microprocessors
Mfr Texas Instruments
Series OMAP-L1x
Package Tray
Product Status Obsolete
Core Processor ARM926EJ-S
Number of Cores/Bus Width 1 Core, 32-Bit
Speed 375MHz
Co-Processors/DSP Signal Processing; C674x, System Control; CP15
RAM Controllers SDRAM
Graphics Acceleration No
Display & Interface Controllers LCD
Ethernet 10/100Mbps (1)
USB USB 1.1 + PHY (1), USB 2.0 + PHY (1)
Voltage - I/O 1.8V, 3.3V
Temperature Range - Operating -40°C ~ 105°C (TJ)
Package / Case 256-BGA
Supplier Device Package 256-BGA (17x17)
Additional Interfaces HPI, I2C, McASP, MMC/SD, SPI, UART
Base Product Number XOMAPL13
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Standard Package 90
Win Source Part Number 1212433-XOMAPL137DZKBA3

Description

Introducing the XOMAPL137DZKBA3 by Texas Instruments

The XOMAPL137DZKBA3 is a high-performance, low-power processor from Texas Instruments, designed for a wide array of multimedia and application-intensive systems. This versatile processor is part of the OMAP-L137 series, which is renowned for its dual-core architecture, comprising an ARM926EJ-S core and a C674x DSP core. This combination delivers exceptional processing capabilities, making it ideal for applications that require both efficient control and high-level signal processing.

Key Features of the XOMAPL137DZKBA3:

  • Powerful Dual-Core System: The ARM926EJ-S and C674x DSP core operate at up to 300 MHz, providing a balanced performance for both control and signal processing tasks.
  • Advanced Multimedia Support: With its integrated DSP, the XOMAPL137DZKBA3 handles complex algorithms for audio, video, and image processing, enabling rich multimedia experiences.
  • Robust Connectivity: This processor includes a host of peripherals, such as USB 2.0, McASP (Multichannel Audio Serial Port), MMC/SD card interfaces, and 10/100 Mb/s Ethernet MAC, ensuring versatile connectivity options.
  • Low Power Consumption: Designed for power-sensitive applications, the XOMAPL137DZKBA3 maintains a low power profile without compromising on performance.
  • Memory Flexibility: It supports a range of external memory interfaces, including DDR2, mDDR, and NAND Flash, providing designers with flexibility in system memory design.
  • Integrated Peripherals: The device comes with a plethora of on-chip peripherals, reducing the need for external components and helping to keep the overall system cost down.

The XOMAPL137DZKBA3 is an excellent choice for developers looking to create sophisticated embedded systems. Its ability to handle multiple streams of data, process complex algorithms, and support various audio and video formats makes it a go-to solution for applications in industrial, medical, automotive, and consumer electronics domains.

With Texas Instruments' commitment to providing long-term product availability and support, the XOMAPL137DZKBA3 is not just a powerful component; it's a reliable foundation for your next innovative project.
