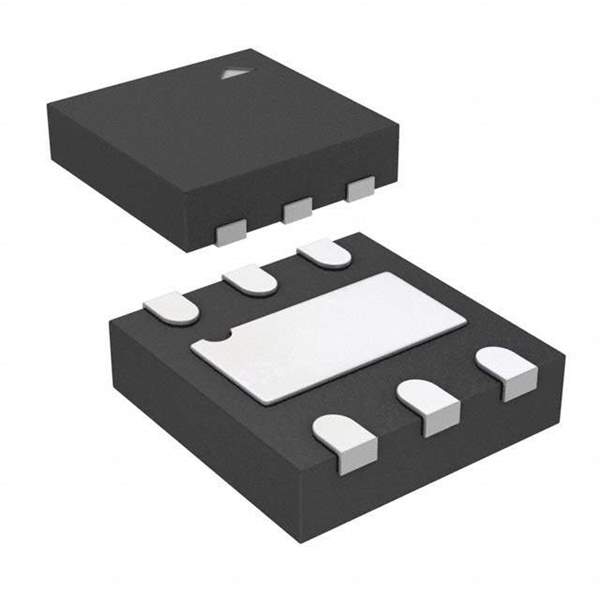

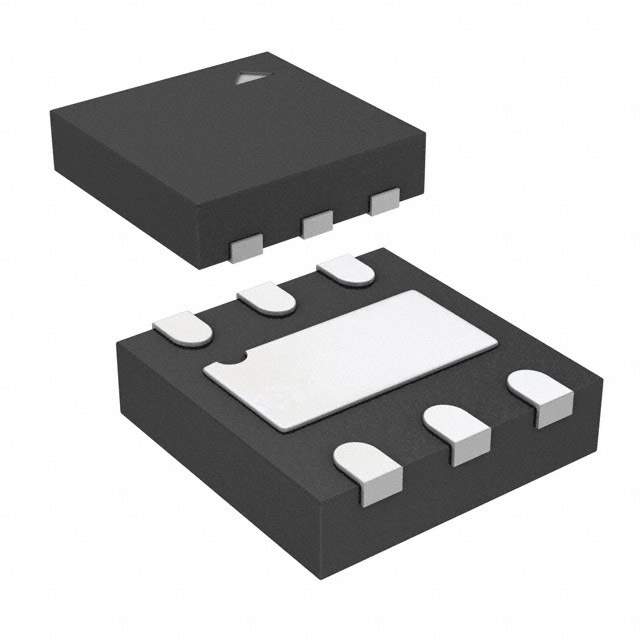

XC3202B183ZR-G Real Image
Same model may have multiple batches, images only for reference.

XC3202B183ZR-G

Part No XC3202B183ZR-G
Manufacturer Torex Semiconductor Ltd
Catalog Magnetic Sensors - Switches (Solid State)
Description MAGNETIC SWITCH OMNIPOLAR 6QFN / Low Power Consumption Hall IC (Magnetic Sensor)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Torex Semiconductor Ltd
Packaging Reel
Function Omnipolar Switch
Technology Hall Effect
Polarization Either
Sensing Range ±4mT Trip, 0mT Release
Test Condition 25°C
Supply Voltage (V) 2.4V ~ 5.5V
Current - Supply (Maximum) 16μA
Current - Output (Maximum) 40mA
Output Type Push-Pull
Temperature Range - Operating -40°C ~ 85°C
Manufacturer Package 6-UDFN Exposed Pad
Supplier Device Package 6-QFN-0601 (2x2)
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805448-XC3202B183ZR-G
Ultra Librarian 3D Model Ultra Librarian XC3202B183ZR-G CAD Model

Description

The Torex Semiconductor Ltd electronic component is a high-quality component from Torex Semiconductor Ltd.

  • Win Source Part Number: 805448-XC3202B183ZR-G
  • Popularity: Medium
  • Packaging: Reel
  • Technology: Hall Effect
  • Output Type: Push-Pull
  • Function: Omnipolar Switch
  • Sensing Range: ±4mT Trip, 0mT Release
  • Supplier Device Package: 6-QFN-0601 (2x2)
  • Temperature Range: -40°C to 85°C
  • Current Output: 40mA
  • Manufacturer Pack Quantity: 3,000
  • MSL Level: 1 (Unlimited)
  • Supply Voltage Range: 2.4V to 5.5V
  • Maximum Supply Current: 16μA
