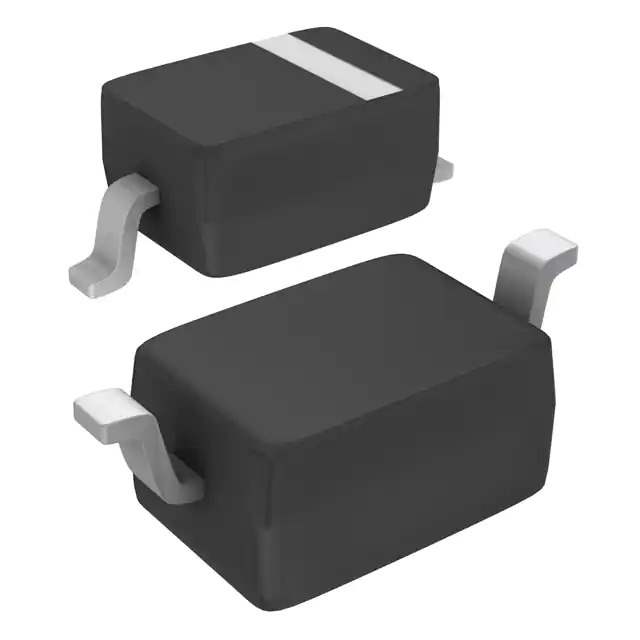

1SS406,H3F Real Image
Same model may have multiple batches, images only for reference.

1SS406,H3F

Part No 1SS406,H3F
Manufacturer Toshiba Semiconductor and Storage
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 20V 50MA USC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Toshiba Semiconductor and Storage
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 20 V
Current - Average Rectified (Io) 50mA
Voltage - Forward (Vf) (Max) @ If 550 mV @ 50 mA
Speed Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr 500 nA @ 20 V
Capacitance @ Vr, F 3.9pF @ 0V, 1MHz
Mounting Type Surface Mount
Package / Case SC-76, SOD-323
Supplier Device Package USC
Operating Temperature - Junction 125°C (Max)
Base Product Number 1SS406
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 814960-1SS406,H3F
Ultra Librarian 3D Model Ultra Librarian 1SS406,H3F CAD Model

Description

The 814960-1SS406 is a Schottky diode designed for small signal applications with a maximum reverse voltage of 20 V.

  • Average rectified current: 50mA
  • Forward voltage: 550mV @ 50mA
  • Current leakage: 500nA @ 20V
  • Capacitance: 3.9pF @ 0V, 1MHz
  • Maximum junction temperature: 125°C
  • Package: SC-76, SOD-323
  • Packaging: Tape and reel
  • Standard package: 3,000 pcs
  • Manufacturer: Toshiba Semiconductor and Storage
