Same model may have multiple batches, images only for reference.

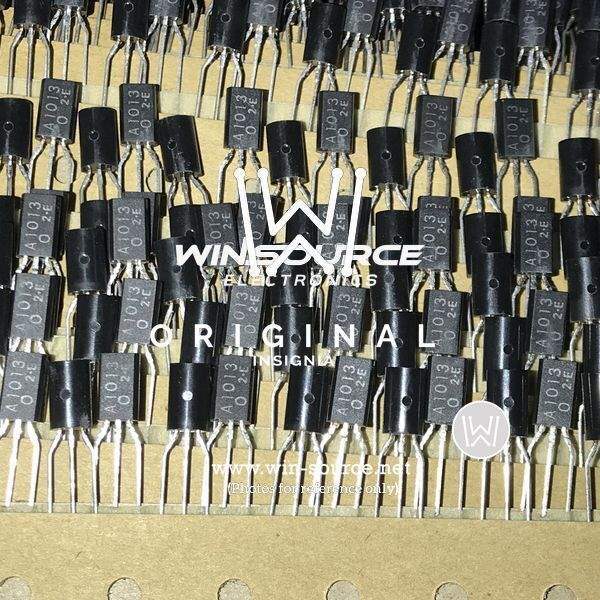

2SA1013-O real image
Same model may have multiple batches, images only for reference.

2SA1013-O

Part No 2SA1013-O
Manufacturer Toshiba Semiconductor and Storage
Catalog Transistors (BJT) - Single
Description Trans GP BJT PNP 160V 1A 3-Pin TO-92 Mod / TRANS PNP 1A 160V TO226-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Toshiba Semiconductor and Storage
Packaging Bulk
Transistor Polarity PNP
Maximum Current Collector 1A
VCEO Maximum Collector-Emitter Breakdown Voltage 160V
Max Vce (sat) 1.5V @ 50mA, 500mA
Collector Cut-off Current(Max) 1μA (ICBO)
Typical Gain (hFE) (Min) 60 @ 200mA, 5V
Maximum Power Dissipation 900mW
Frequency - Transition 50MHz
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package TO-92L
Win Source Part Number 153269-2SA1013-O
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name 2SA1013O
Introduction Date October 03, 1997
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian 2SA1013-O CAD Model

Description

Description

The 2SA1013-O is a specific grade within the 2SA1013 series. Known for its specific hFE rankings, it's perfect for applications demanding precise current gain characteristics.

Features and Benefits

  • Specifically designed hFE range suitable for tight tolerance applications.
  • Excellent power amplification capabilities for audio electronics.
  • Robust structure suitable for high reliability applications.

Applications

  • Precision Amplifiers
  • Power Management Circuits
  • Signal Conditioners
  • Frequency Multiplier Circuits

Providing consistent and high-level performance, the 2SA1013-O is an excellent choice for high-precision tasks.
