Same model may have multiple batches, images only for reference.

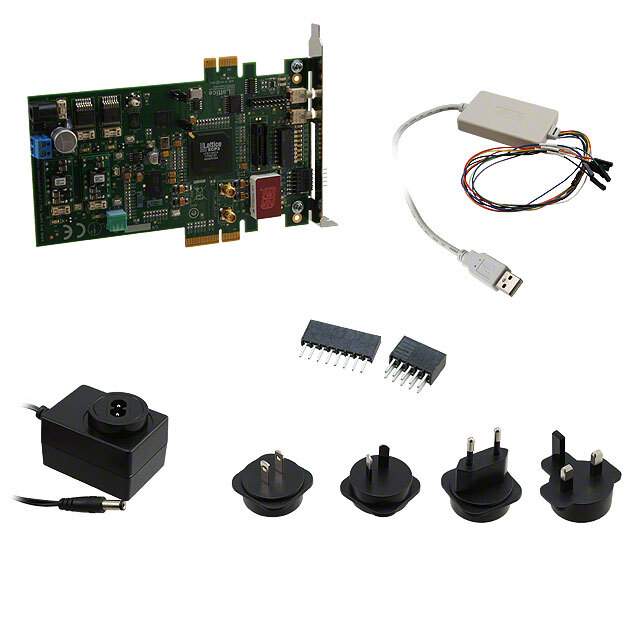

LFE3-95EA-PCIE-DKN Real Image
Same model may have multiple batches, images only for reference.

LFE3-95EA-PCIE-DKN

Part No LFE3-95EA-PCIE-DKN
Manufacturer Lattice Semiconductor Corporation
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description KIT DEV ECP3-95EA PCI EXPRESS / LatticeECP3 FPGA Device Family Connectivity Interface Evaluation Board
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation and Demonstration Boards and Kits
Mfr Lattice Semiconductor Corporation
Series ECP3
Package Box
Product Status Obsolete
Type Interface
Function Connectivity
Embedded Yes, FPGA / CPLD
Utilized IC / Part LatticeECP3 FPGA Device Family
Primary Attributes x1/x4 PCI Express Edge Connectors, Both Serial SPI Flash and Parallel Flash
Supplied Contents Board(s), Cable(s)
Base Product Number LFE3-95
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 4A994I
HTSUS 8473.30.1180
Other Names LFE395EAPCIEDKN,220-1161
Standard Package 1
Win Source Part Number 1032307-LFE3-95EA-PCIE-DKN
Ultra Librarian 3D Model Ultra Librarian LFE3-95EA-PCIE-DKN CAD Model

Description

The LatticeECP3 ECP3-95EA-PCIE-DKN development board is a connectivity interface type evaluation and demonstration board that comes with both serial SPI flash and parallel flash from Lattice Semiconductor Corporation.

  • Interface Type: Connectivity
  • Description: Evaluation and Demonstration Board
  • Features: Comes with both serial SPI flash and parallel flash.
  • Device: Embedded with an FPGA/CPLD and utilizes the LatticeECP3 FPGA device family.
  • Connectors: Comes with x1/x4 PCI Express edge connectors
  • Supplied with: Board(s) and cable(s).
  • Package: Box
  • Standard Package: 1
  • Series: ECP3 series
  • Application: Ideal for connectivity applications and provides a reliable and efficient solution for your development needs.
