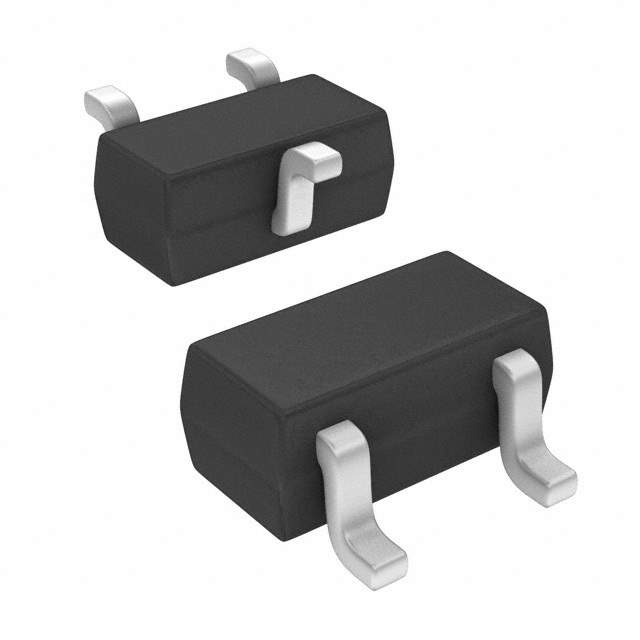

The 2SC5066 is a silicon NPN epitaxial planar transistor manufactured by Toshiba Semiconductor and Storage. It is designed for use in VHF/UHF power amplifiers, primarily for mobile communication applications. This transistor is known for its high gain and high output power capabilities.

Applications:

• VHF/UHF power amplifiers
• Mobile communication equipment (e.g., cellular phones, walkie-talkies)
• RF transmitters
• Driver stages in power amplifiers
• Oscillators

Features:

• High power gain: Enables efficient amplification of RF signals.
• High output power: Delivers substantial power for transmission.
• Low intermodulation distortion: Maintains signal integrity.
• High collector-emitter breakdown voltage: Provides reliability and robustness.
• Surface mount package: Allows for compact and efficient circuit designs.

Benefits:

• Efficient RF amplification: Maximizes power output with minimal input signal.
• Clear signal transmission: Minimizes signal degradation and distortion.
• Versatile application: Suitable for a wide range of VHF/UHF communication devices.
• Compact design: Enables the creation of smaller and lighter RF circuits.
• Reliable performance: Ensures stable operation even under demanding conditions.

The 2SC5066 is a key component in VHF/UHF power amplifier designs, providing the necessary gain and power for effective signal transmission. Critical specifications include collector-emitter voltage (VCEO), collector current (IC), power dissipation (PC), and transition frequency (fT). Careful thermal management is essential to ensure the transistor operates within its safe operating area, as excessive heat can significantly reduce its lifespan and performance. Proper impedance matching is also required for optimal power transfer and minimal signal reflections. Consult the Toshiba datasheet for detailed electrical characteristics, thermal resistance, and safe operating area information.
