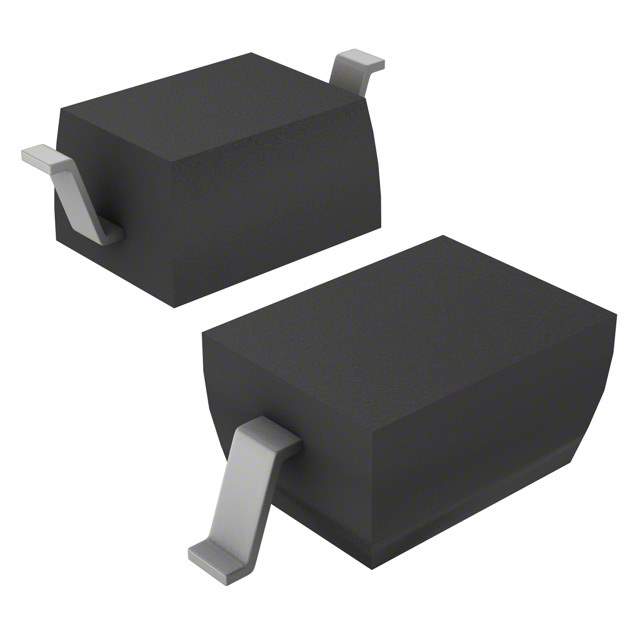

The CUS05S30 is a Schottky Barrier Diode manufactured by Toshiba Semiconductor and Storage. This diode is designed for high-speed switching applications and features a low forward voltage drop, making it suitable for use in power supplies, DC-DC converters, and other circuits where efficiency is critical.

Applications:

• Power Supplies: Rectification and freewheeling in switched-mode power supplies.
• DC-DC Converters: Improving efficiency and reducing switching losses.
• Reverse Polarity Protection: Preventing damage from incorrect power supply connections.
• Solar Panel Junction Boxes: Blocking reverse current flow in solar panel arrays.
• Lighting: Efficient rectification in LED lighting applications.

Features:

• Schottky Barrier Technology: Provides a lower forward voltage drop and faster switching speed compared to conventional diodes.
• Low Forward Voltage Drop: Minimizes power loss and improves efficiency.
• High Surge Current Capability: Withstands high surge currents, protecting the diode from damage during transient events.
• Compact Package: Available in a small surface-mount package for space-saving designs.

Benefits:

• Improved Efficiency: Reduces power loss in power supplies and DC-DC converters.
• Faster Switching Speed: Enables higher operating frequencies in switching circuits.
• Enhanced Reliability: Robust design ensures reliable operation in demanding environments.
• Space-Saving Design: Small package size allows for compact circuit layouts.

Additional Details:

The CUS05S30 diode has a maximum repetitive peak reverse voltage of 30V and a forward current rating of 0.5A. It is typically available in a surface-mount package such as SOD-323. Refer to the product datasheet for specific technical specifications, including maximum ratings, electrical characteristics, and thermal resistance.
