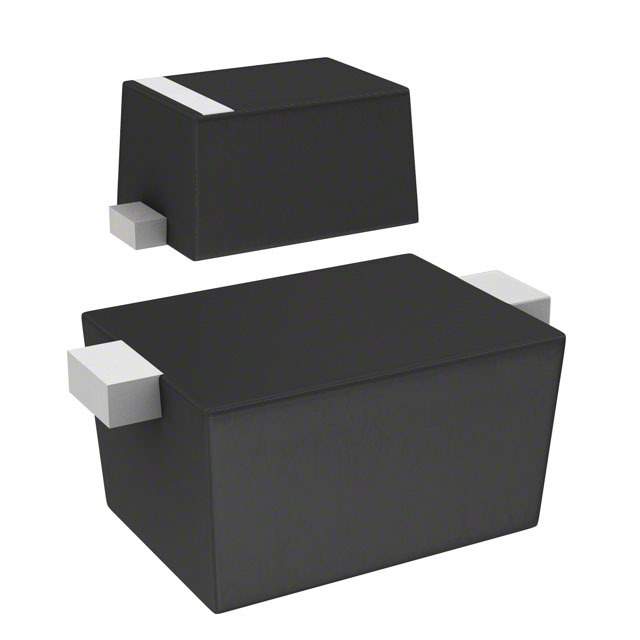

The JDP2S02AFS is a Schottky Barrier Diode from Toshiba Semiconductor and Storage. It is designed for high-speed switching applications and features low forward voltage drop and fast reverse recovery time. This diode is commonly used in power supplies, DC-DC converters, and other high-frequency circuits.

Applications:

• Switching Power Supplies: Used as a rectifier to convert AC voltage to DC voltage efficiently.
• DC-DC Converters: Employed to increase or decrease voltage levels in electronic devices.
• High-Frequency Inverters: Utilized in inverter circuits to switch DC voltage to AC voltage at high frequencies.
• Reverse Polarity Protection: Protects sensitive circuits from damage caused by incorrect polarity connections.
• Clamping Diodes: Used to limit voltage spikes and protect other components from overvoltage conditions.

Features:

• Low Forward Voltage Drop (VF): Minimizes power loss and improves efficiency.
• Fast Reverse Recovery Time (trr): Enables high-speed switching and reduces switching losses.
• Small Package Size: Compact surface-mount package saves board space.
• High Surge Current Capability: Withstands large current surges without damage.
• RoHS Compliant: Complies with environmental regulations regarding hazardous substances.

Benefits:

• Improved Efficiency: Low forward voltage drop reduces power dissipation and increases efficiency.
• Reduced Switching Losses: Fast reverse recovery time minimizes switching losses, leading to better performance.
• Compact Design: Small package allows for smaller and more compact circuit designs.
• Enhanced Reliability: High surge current capability ensures robust performance in demanding applications.
• Simplified Thermal Management: Lower power dissipation simplifies thermal management requirements.

Additional Details:

The JDP2S02AFS typically comes in a surface-mount package. Key specifications include forward voltage, reverse voltage, forward current, and reverse recovery time. The exact specifications will vary depending on the test conditions. Datasheets should be consulted for precise specifications, application notes, and recommended PCB layout guidelines.
