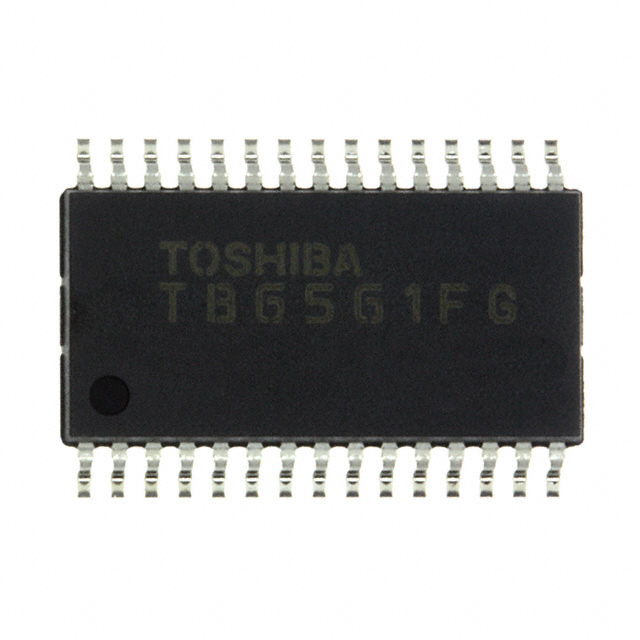

Same model may have multiple batches, images only for reference.

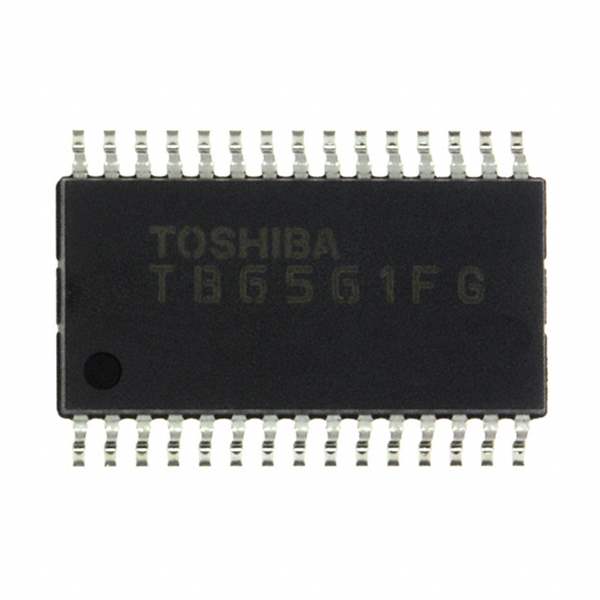

TB6561FG,8,EL Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TB6561FG,8,EL

Part No TB6561FG,8,EL
Manufacturer Toshiba Semiconductor and Storage
Catalog PMIC - Motor Drivers, Controllers
Description IC MOTOR DRIVER PAR 30SSOP
Datasheet
TB6561FG,8,EL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Active
Motor Type - AC, DC Brushed DC
Purpose Driver - Fully Integrated, Control and Power Stage
Technology Bi-CMOS
Applications General Purpose
Output Current 1.5A
Supply Voltage - Operating 10 V to 36 V
Voltage - Load 10 V to 36 V
Temperature Range - Operating -20°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 30-SSOP
Win Source Part Number 130371-TB6561FG,8,EL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TB6561FG,8,EL CAD Model

Description

This electronic component manufactured by Toshiba Semiconductor and Storage is a fully integrated driver with control and power stage purpose.

  • Output Current: 1.5A
  • Voltage Load: 10V to 36V
  • Technology: Bi-CMOS
  • Designed for: brushed DC motor type.
