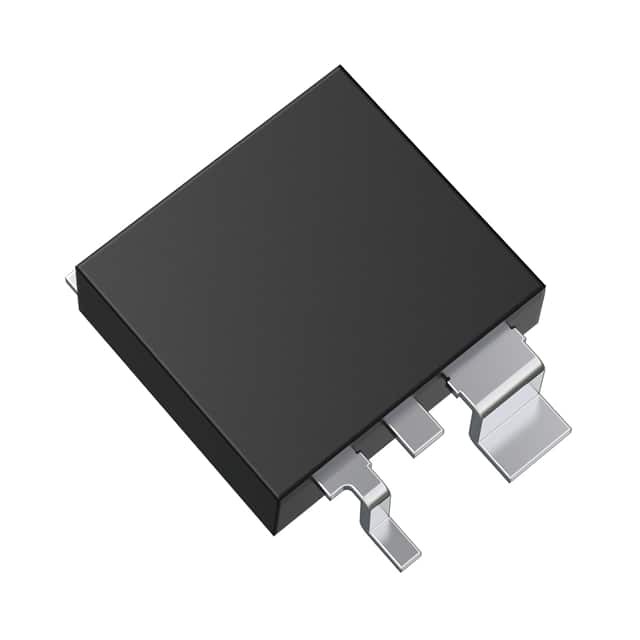

TK160F10N1L,LQ

Name: TK160F10N1L,LQ
Brand: Toshiba Semiconductor and Storage
SKU: 1099419
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TK160F10N1L,LQ
Manufacturer	Toshiba Semiconductor and Storage
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 100V 160A TO220SM / N-Channel 100 V 160A (Ta) 375W (Tc) Surface Mount TO-220SM(W)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Toshiba Semiconductor and Storage
Series	U-MOSVIII-H
Package	Tape & Reel (TR)
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	160A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	2.4mOhm @ 80A, 10V
Vgs(th) (Max) @ Id	3.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	122 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	10100 pF @ 10 V
Power Dissipation (Max)	375W (Tc)
Temperature Range - Operating	175°C
Mounting	SMD (SMT)
Supplier Device Package	TO-220SM(W)
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Base Product Number	TK160F10
MSL Level	3 (168 Hours)
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	TK160F10N1LLQ
Standard Package	1,000
Win Source Part Number	1099419-TK160F10N1L,LQ
Ultra Librarian 3D Model	Ultra Librarian TK160F10N1L,LQ CAD Model

Alternative Products

Description

This electronic component is manufactured by Toshiba Semiconductor and Storage and has the Win Source Part Number 1099419-TK160F10N1L,LQ.

Type: Discrete Semiconductor Product with N-Channel MOSFET technology
Continuous Drain Current: 160A
Rds On: 2.4mOhm @ 80A, 10V
Package: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Maximum Power Dissipation: 375W (Tc)
Temperature Range: 175°C
Input Capacitance: 10100 pF @ 10 V
