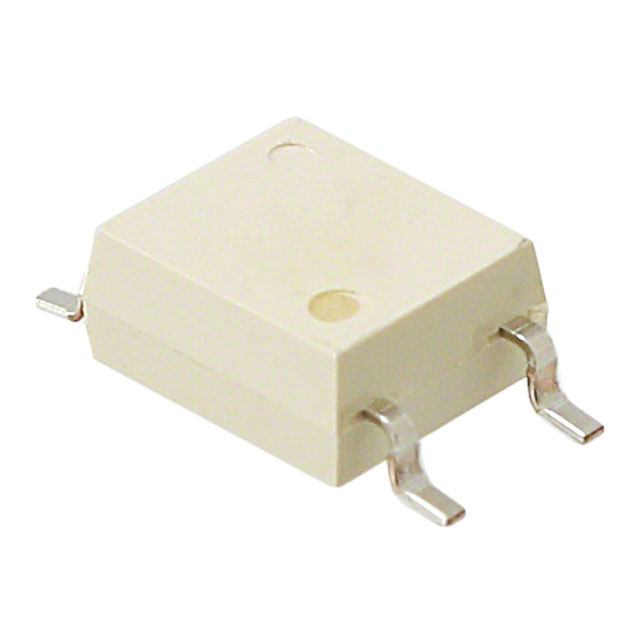

TLP170G(TP,F) Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TLP170G(TP,F)

Part No TLP170G(TP,F)
Manufacturer Toshiba Semiconductor and Storage
Catalog Solid State Relays
Description IC PHOTORELAY MOSFET 4-SOP
Datasheet
TLP170G(TP,F) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Active
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Max On Resistance 50 Ohm
Load Current 100mA
Voltage - Input 1.15VDC
Voltage - Load 0 to 350 V
Mounting SMD (SMT)
Termination Style Gull Wing
Case / Package 4-SOP (2.54mm)
Relay Type Relay
Win Source Part Number 1108841-TLP170G(TP,F)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TLP170G(TP,F) CAD Model

Description

The Toshiba Semiconductor and Storage TLP170G(TP,F) is a relay that comes in a 4-SOP (2.54mm) package.

  • Termination Style: Gull wing
  • Mounting: SMD (SMT)
  • Input Voltage: 1.15VDC
  • Output Type: AC, DC
  • Circuit: SPST-NO (1 Form A)
  • Relay Type: Relay
  • Load Current: 100mA
  • Voltage Load: 0 to 350 V
  • RoHS Compliant: Yes
  • Maximum On Resistance: 50 Ohm
  • Supply and Demand Status: Balance
