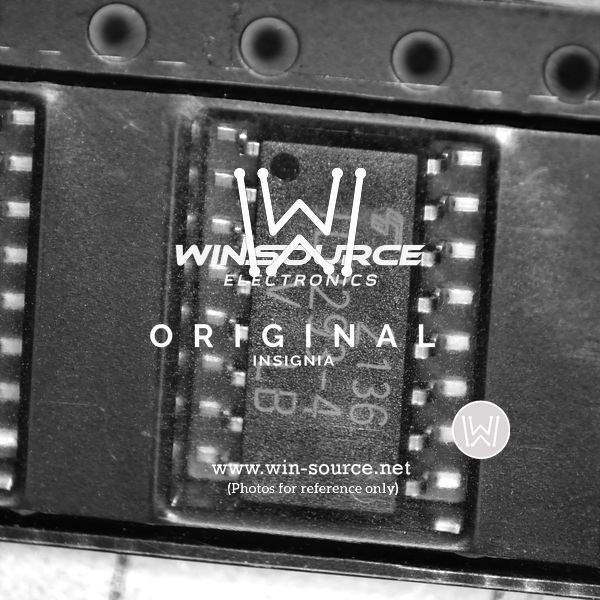

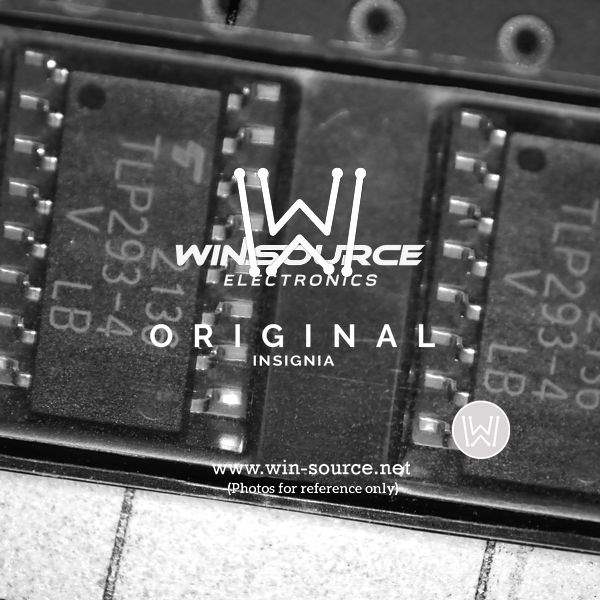

TLP293-4(4LGBTPE Real Image TLP293-4(4LGBTPE Real Image1 TLP293-4(4LGBTPE Real Image2
Same model may have multiple batches, images only for reference.
TLP293-4(4LGBTPE Real Image TLP293-4(4LGBTPE Real Image1 TLP293-4(4LGBTPE Real Image2
TLP293-4(4LGBTPE Real Image TLP293-4(4LGBTPE Real Image1 TLP293-4(4LGBTPE Real Image2
Same model may have multiple batches, images only for reference.

TLP293-4(4LGBTPE

Part No TLP293-4(4LGBTPE
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 3.75KV TRANS SO16  /  Optoisolator Transistor Output 3750Vrms 4 Channel 16-SO
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Transistor, Photovoltaic Output
Mfr Toshiba Semiconductor and Storage
Package Tape & Reel
Number of Channels 4
Voltage - Isolation 3750Vrms
Current Transfer Ratio (Min) 100% @ 500µA
Current Transfer Ratio (Max) 600% @ 500µA
Turn On / Turn Off Time (Typ) 3µs, 3µs
Rise / Fall Time (Typ) 2µs, 3µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 80V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.25V
Current - DC Forward (If) (Max) 50 mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 16-SOIC (0.179", 4.55mm Width)
Supplier Device Package 16-SO
Base Product Number TLP293
Other Names TLP293-4(4LGBTPEDKR,TLP293-4(4LGBTPECT,TLP293-4(4LGBTPETR,TLP293-4(4LGBTPE(T
Standard Package 2,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 1243456-TLP293-4(4LGBTPE
Ultra Librarian 3D Model Ultra Librarian TLP293-4(4LGBTPE CAD Model

Description

The Toshiba Semiconductor and Storage TLP293-4(4LGBTPE is an optoisolator that is commonly used in various electronic circuits.

  • Applications: Power supplies, audio equipment, and other electronic devices
  • Current Transfer Ratio: 100% @ 500µA
  • Current Transfer Ratio: 600% @ 500µA
