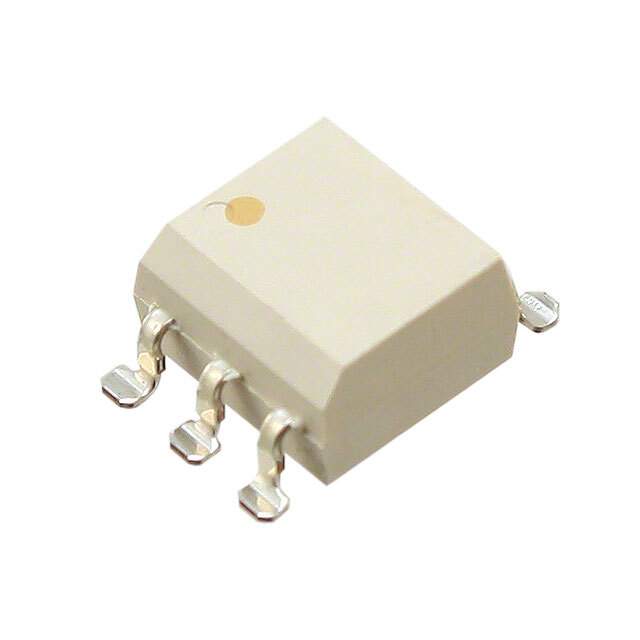

TLP3043 Real Image
Same model may have multiple batches, images only for reference.

TLP3043

Part No TLP3043
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 5KV TRIAC 6DIP 5L
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Toshiba Semiconductor and Storage
Packaging Tube/Rail
Status Active
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Isolation Voltage 5000Vrms
Voltage - Off State 400V
Static dV/dt (Min) 200V/μs
Current - LED Trigger (Ift) (Max) 5mA
Current - On State (It (RMS)) (Max) 100mA
Current - Hold (Ih) 600μA (Typ)
Forward Voltage 1.15V
Continuous forward current- Max 50mA
Temperature Range - Operating -40°C to 100°C
Mounting Through Hole
Case / Package 6-DIP (Cut), 5 Lead
Approvals BSI, SEMKO, UR
Win Source Part Number 056686-TLP3043
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TLP3043 CAD Model

Description

The Toshiba Semiconductor and Storage TLP3043 is an isolator that comes in a 6-DIP (Cut), 5 Lead package.

  • Packaging: Tube/Rail
  • Approvals: BSI, SEMKO, and UR
  • Mounting: Through Hole
  • Output Type: Triac
  • Forward Voltage: 1.15V
  • Voltage-Off State: 400V
  • Current-On State (It (RMS)) (Max): 100mA
  • Isolation Voltage: 5000Vrms
  • Current-Hold (Ih): 600μA (Typ)
  • Zero Crossing Circuit: Yes
  • Static dV/dt (Min): 200V/μs
  • Current-LED Trigger (Ift) (Max): 5mA
  • Continuous Forward Current-Max: 50mA
  • Supply and Demand Status: Balance
