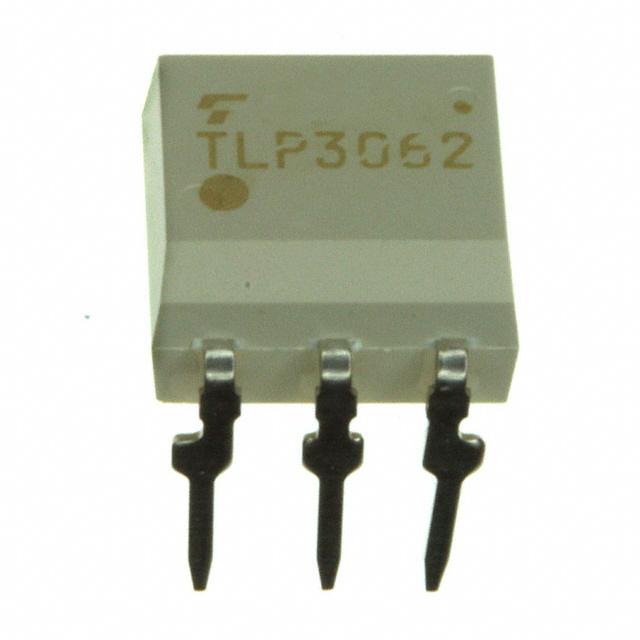

TLP3062(S,C,F) Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TLP3062(S,C,F)

Part No TLP3062(S,C,F)
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 5KV TRIAC 6DIP 5L
Datasheet
TLP3062(S,C,F) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Toshiba Semiconductor and Storage
Packaging Tube
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Voltage - Isolation 5000Vrms
Voltage - Off State 600V
Static dV/dt (Minimum) 200V/μs
Current - LED Trigger (Ift) (Maximum) 10mA
Current - On State (It (RMS)) (Maximum) 100mA
Current - Hold (Ih) 600μA (Typ)
Voltage - Forward (Vf) (Typ) 1.15V
Current - DC Forward (If) (Maximum) 50mA
Operating Temperature Range -40°C ~ 100°C
Mounting Style Through Hole
Package 6-DIP (0.300", 7.62mm), 5 Leads
Manufacturer Package 6-DIP (Cut), 5 Lead
Approvals BSI, SEMKO, UR
Manufacturer Homepage www.semicon.toshiba.co.jp/eng
Win Source Part Number 757515-TLP3062(S,C,F)
Popularity Medium
Supply and Demand Status Limited
Family Name TLP3062
Introduction Date September 13, 2004
Country of Origin Japan
Estimated EOL Date 2021
Ultra Librarian 3D Model Ultra Librarian TLP3062(S,C,F) CAD Model

Description

This electronic component is manufactured by Toshiba Semiconductor and Storage.

  • Package: 6-DIP (0.300", 7.62mm), 5 Leads
  • Output Type: Triac
  • Voltage - Forward (Vf) (Typ): 1.15V
  • Voltage - Off State: 600V
  • Number of Channels: 1
  • Voltage - Isolation: 5000Vrms
  • Current - Hold (Ih): 600μA (Typ)
  • Zero Crossing Circuit: Yes
  • Category: Isolators
