Same model may have multiple batches, images only for reference.

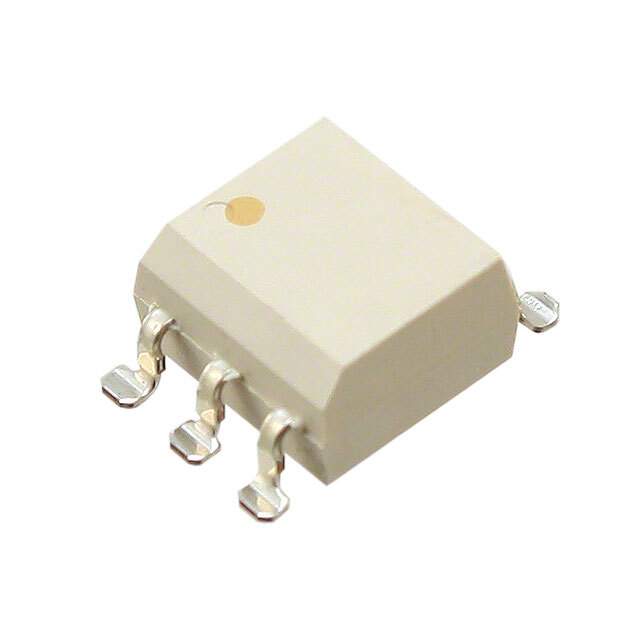

TLP3062 S Real Image
Same model may have multiple batches, images only for reference.

TLP3062 S

Part No TLP3062 S
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 5KV TRIAC 6DIP 5L
Datasheet
TLP3062 S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Toshiba Semiconductor and Storage
Packaging Tube/Rail
Status Active
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Isolation Voltage 5000Vrms
Voltage - Off State 600V
Static dV/dt (Min) 200V/μs
Current - LED Trigger (Ift) (Max) 10mA
Current - On State (It (RMS)) (Max) 100mA
Current - Hold (Ih) 600μA (Typ)
Forward Voltage 1.15V
Continuous forward current- Max 50mA
Temperature Range - Operating -40°C to 100°C
Mounting Through Hole
Case / Package 6-DIP (Cut), 5 Lead
Approvals BSI, SEMKO, UR
Win Source Part Number 056688-TLP3062 S
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TLP3062 S CAD Model

Description

The Toshiba Semiconductor and Storage TLP3062 S is a triac output type solid-state relay that has a voltage rating of 600V and a current rating of 100mA.

  • Voltage: 600V
  • Current: 100mA
  • Mounting Style: Through-Hole
  • Package: 6-DIP (cut), 5 lead
  • Isolation Voltage: 5000Vrms
  • Current Hold: 600μA (typ)
  • Zero-Crossing Circuit: Yes
  • Static dV/dt: 200V/μs
  • Operating Temperature Range: -40°C to 100°C
  • Popularity: Medium
  • Supply and Demand Status: Limited
