The Toshiba Semiconductor and Storage TLP383 is an optoisolator transistor with a photovoltaic output.

• Maximum Current Forward: 50 mA
• Forward Voltage: 1.25V
• Rise/Fall Time: 2/3µs
• Current Output/Channel: 50mA
• Number of Channels: 1
• Isolation Voltage: 5000Vrms
• Current Transfer Ratio: 200% @ 500µA (min) and 400% @ 500µA (max)
• Voltage Output (max): 80V
• Vce Saturation (max): 300mV
• Turn On/Turn Off Time (typ): 3µs

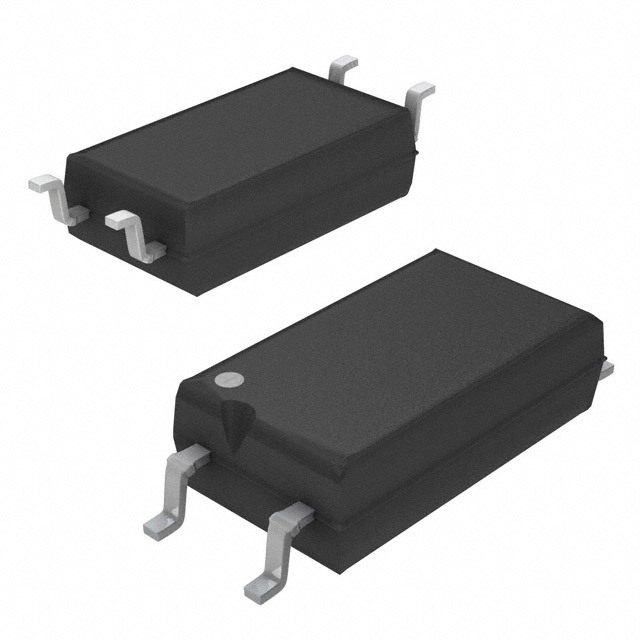

• Package/Case: 6-SOIC (0.173", 4.40mm Width), 4 Leads
• Supplier Device Package: 6-SO, 4 Lead
• Temperature Range of Operation: -55°C to 125°C
