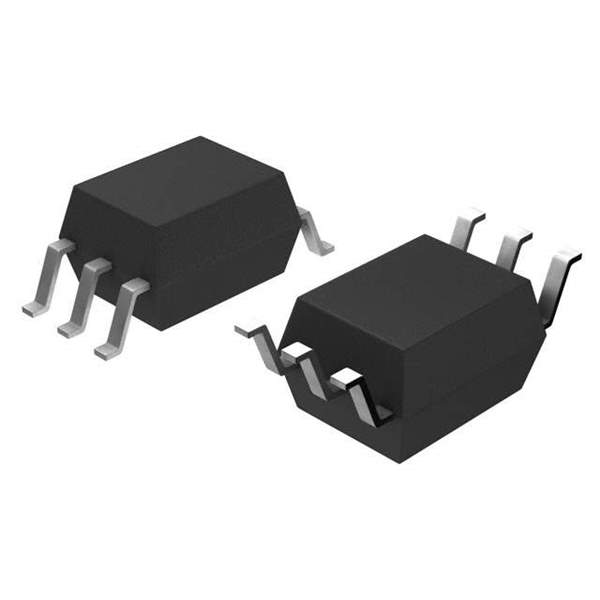

TLP4197G(F) Real Image
Same model may have multiple batches, images only for reference.

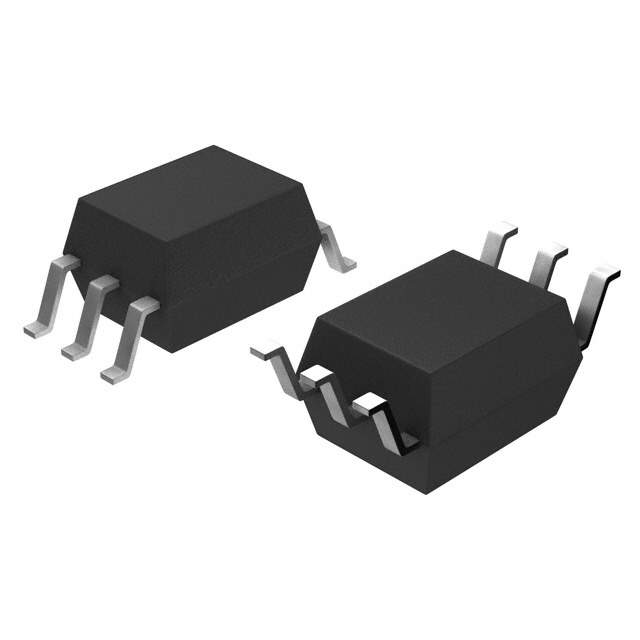

TLP4197G(F)

Part No TLP4197G(F)
Manufacturer Toshiba Semiconductor and Storage
Catalog Solid State Relays
Description PHOTORELAY MOSFET 6-SOP
Datasheet
TLP4197G(F) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Toshiba Semiconductor and Storage
Packaging Bulk
Status Active
Circuit SPST-NC (1 Form B)
Output Type AC, DC
Max On Resistance 25 Ohm
Load Current 120mA
Voltage - Input 1.15VDC
Voltage - Load 0 to 350 V
Mounting SMD (SMT)
Termination Style Gull Wing
Case / Package 6-SOP (2.54mm)
Relay Type Relay
Win Source Part Number 213044-TLP4197G(F)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TLP4197G(F) CAD Model

Description

The Toshiba TLP4197G(F) is a relay that is commonly used in electronic circuits.

  • Manufacturer: Toshiba Semiconductor and Storage
  • Win Source Part Number: 213044-TLP4197G(F)
  • Mounting: SMD (SMT)
  • Voltage Input: 1.15VDC
  • Output Type: AC/DC
  • Circuit: SPST-NC (1 Form B)
  • Load Current: 120mA
  • Voltage Load: 0 to 350 V
  • Maximum On Resistance: 25 Ohm
  • Case/Package: 6-SOP (2.54mm)
  • Supply and Demand: Balance
  • Termination Style: Gull wing
