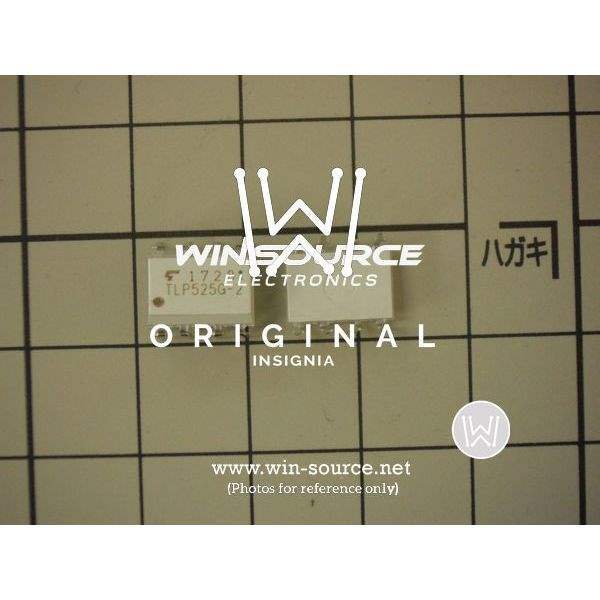

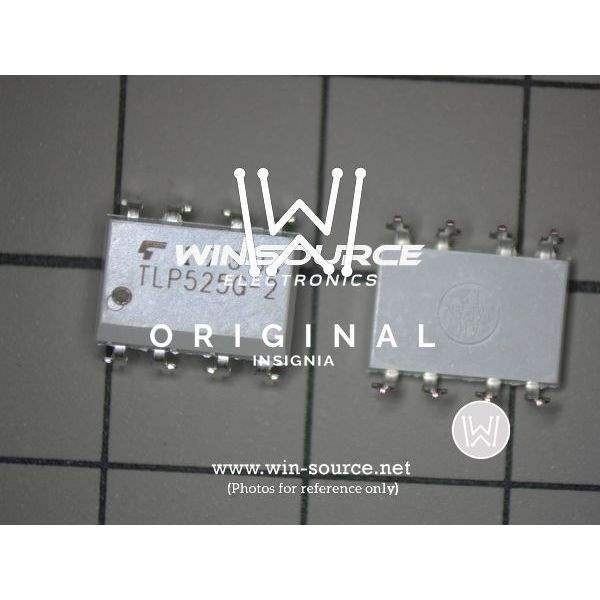

TLP525G-2(F) Toshiba Semiconductor and Storage TLP525G-2(F) Real Image TLP525G-2(F) label picture 2 TLP525G-2(F) real image TLP525G-2(F) real image 2
Same model may have multiple batches, images only for reference.
TLP525G-2(F) Toshiba Semiconductor and Storage TLP525G-2(F) Real Image TLP525G-2(F) label picture 2 TLP525G-2(F) real image TLP525G-2(F) real image 2
TLP525G-2(F) Toshiba Semiconductor and Storage TLP525G-2(F) Real Image TLP525G-2(F) label picture 2 TLP525G-2(F) real image TLP525G-2(F) real image 2
Same model may have multiple batches, images only for reference.

TLP525G-2(F)

Part No TLP525G-2(F)
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 2.5KV TRIAC 8DIP
Datasheet
TLP525G-2(F) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Toshiba Semiconductor and Storage
Packaging Tube/Rail
Status Active
Output Type Triac
Zero Crossing Circuit No
Number of Channels 2
Isolation Voltage 2500Vrms
Voltage - Off State 400V
Static dV/dt (Min) 200V/μs
Current - LED Trigger (Ift) (Max) 10mA
Current - On State (It (RMS)) (Max) 80mA
Current - Hold (Ih) 200μA (Typ)
Forward Voltage 1.15V
Continuous forward current- Max 50mA
Temperature Range - Operating -40°C to 100°C
Mounting Through Hole
Case / Package 8-DIP
Approvals UR
Win Source Part Number 092019-TLP525G-2(F)
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian TLP525G-2(F) CAD Model

Description

The Toshiba Semiconductor and Storage TLP525G-2(F) is a through-hole mounting, two-channel triac output type isolator with a voltage-off state of 400V and a forward voltage of 1.15V.

  • Market Availability: in the open market.
  • Supply and demand status: sufficient.
  • Continuous forward current-max: 50mA
  • Current-on state: 80mA
  • Approval: UR approved
  • Isolation voltage: 2500Vrms
  • Current-hold: 200μA (typ)
  • Static dV/dt (min): 200V/μs
  • Temperature range-operating: -40°C to 100°C
  • Package: 8-DIP
  • Quantity per package: 50.
