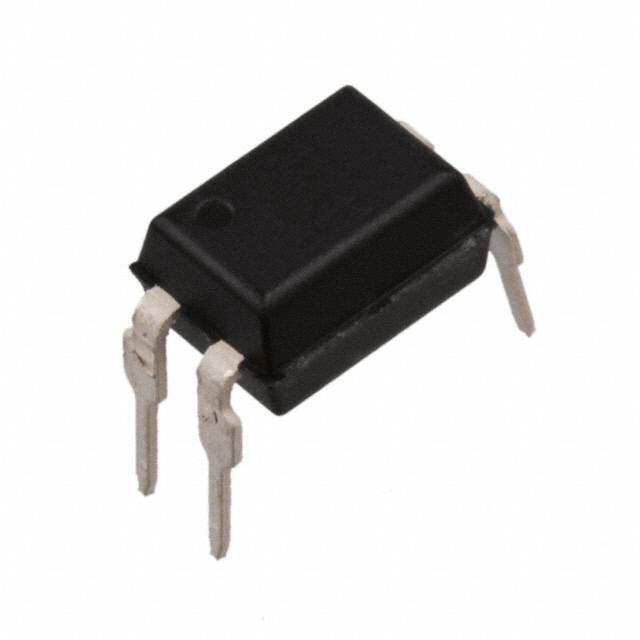

The TLP621-1 is a single-channel optocoupler manufactured by Toshiba Semiconductor and Storage. It consists of a gallium arsenide infrared emitting diode optically coupled to a silicon phototransistor. This design provides electrical isolation between the input and output, allowing for signal transfer without a direct electrical connection, making it suitable for various applications requiring safety and noise isolation.

Applications

• Microcontroller Interfacing: Provides isolation between microcontrollers and external circuits.
• Industrial Control Systems: Used for isolating control signals in industrial automation equipment.
• Power Supply Feedback: Offers isolation in feedback loops of switching power supplies.
• Motor Control: Isolates control signals in motor drive applications.
• General Purpose Isolation: Used for general isolation in various electronic circuits.

Features

• High Isolation Voltage: Offers a high isolation voltage (typically 5000 Vrms) for safety.
• Low Input Current: Requires a low forward current, making it compatible with digital logic circuits.
• High Current Transfer Ratio (CTR): Provides efficient signal transfer between the input and output.
• Compact Package: Available in a small DIP package for easy integration into circuit boards.
• Pb-Free and RoHS Compliant: Complies with environmental regulations for lead-free manufacturing.

Benefits

• Enhanced Safety: Protects sensitive circuits from high voltages and transients.
• Noise Reduction: Reduces noise coupling between input and output circuits.
• Simplified Circuit Design: Simplifies the design of isolated systems.
• Improved Reliability: Offers robust performance and long-term reliability.
• Regulatory Compliance: Meets relevant safety and environmental standards.

The TLP621-1 is designed for high-density mounting and is available in various lead forming options. This optocoupler is widely used in applications where electrical isolation is critical, such as industrial automation, power supplies, and motor control systems. Its stable performance over a wide temperature range makes it suitable for use in demanding industrial environments. The "-1" suffix typically denotes a specific pinout or performance grade within the TLP621 series.
