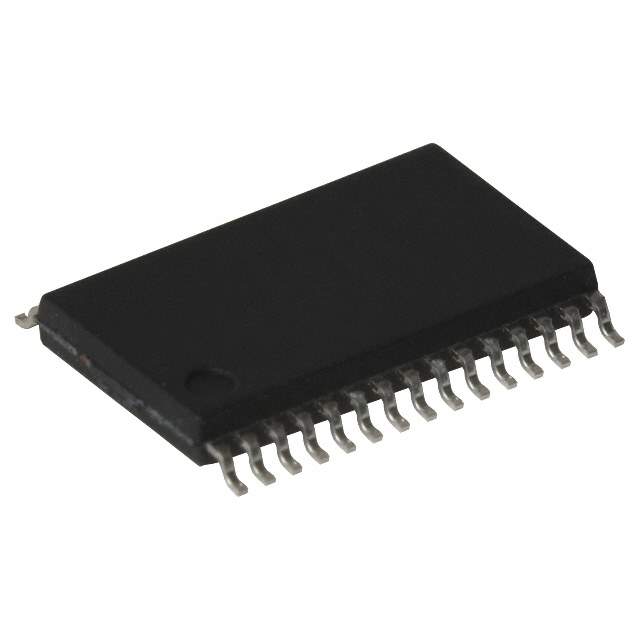

The TMP87P808MG is an 8-bit microcontroller from Toshiba. It is part of the TLCS-870 series and is designed for a variety of embedded control applications. It features a built-in analog-to-digital converter (ADC), timers, and serial communication interfaces. This microcontroller is often used in applications requiring real-time control and data acquisition.

Applications:

• Remote Controls
• Consumer Electronics
• Small Appliance Control
• Toy Control Systems

Features:

• 8-bit CPU Core (TLCS-870)
• On-Chip ROM (Read-Only Memory) for Program Storage
• On-Chip RAM (Random-Access Memory) for Data Storage
• Analog-to-Digital Converter (ADC)
• Timers/Counters
• Serial Communication Interface (UART)
• I/O Ports

Benefits:

• Integrated Peripherals: Reduces external component count and simplifies system design.
• Flexible I/O: Allows for interfacing with a variety of external devices and sensors.
• Cost-Effective Solution: Provides a balance of performance and features for cost-sensitive applications.

Additional Details:

The TMP87P808MG typically operates with a clock frequency of several megahertz. The precise amount of ROM and RAM varies depending on the specific version. The microcontroller is usually packaged in a shrink DIP or surface mount package. Details on interrupt handling and memory mapping are provided in the Toshiba datasheet.
