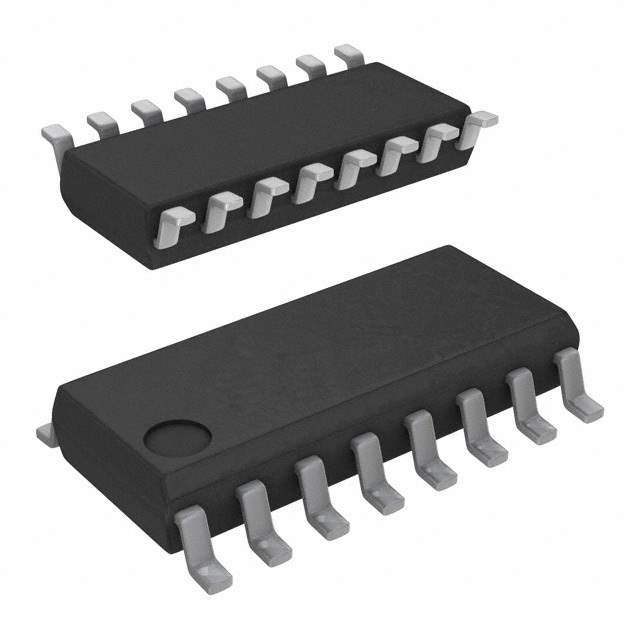

TSM934ESE+T Real Image
Same model may have multiple batches, images only for reference.

TSM934ESE+T

Part No TSM934ESE+T
Manufacturer Touchstone Semiconductor
Catalog Linear - Comparators
Description IC COMPARATOR QUAD W/REF 16S0IC
Datasheet
TSM934ESE+T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Touchstone Semiconductor
Packaging Cut Reel
Status Obsolete(EOL)
Type with Voltage Reference
Number of Elements 4
Output Type CMOS, Push-Pull, TTL
Supply Voltage - Operating 2.5 V to 11 V, ±1.25 V to 5.5 V
Voltage - Input Offset (Max) 10mV @ 2.5V
Current - Output (Typ) 40mA
Current - Quiescent (Max) 6.5μA
CMRR, PSRR (Typ) 80dB CMRR, 80dB PSRR
Propagation Delay (Max) 12μs
Hysteresis 50mV
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 16-SOIC
Win Source Part Number 117002-TSM934ESE+T
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TSM934ESE+T CAD Model

Description

The Touchstone Semiconductor 117002-TSM934ESE+T is a CMOS, Push-Pull, TTL type voltage reference integrated circuit with 4 elements.

  • Quiescent Current: 6.5μA
  • Input Offset Voltage: 10mV @ 2.5V
  • Output Current: 40mA
  • CMRR and PSRR: 80dB
  • Propagation Delay: 12μs
  • Hysteresis: 50mV
  • Package: 16-SOIC
  • Operating Temperature Range: -40°C to 85°C
  • Supply Voltage Range: 2.5 V to 11 V, ±1.25 V to 5.5 V
  • Supply and Demand Status: balanced
