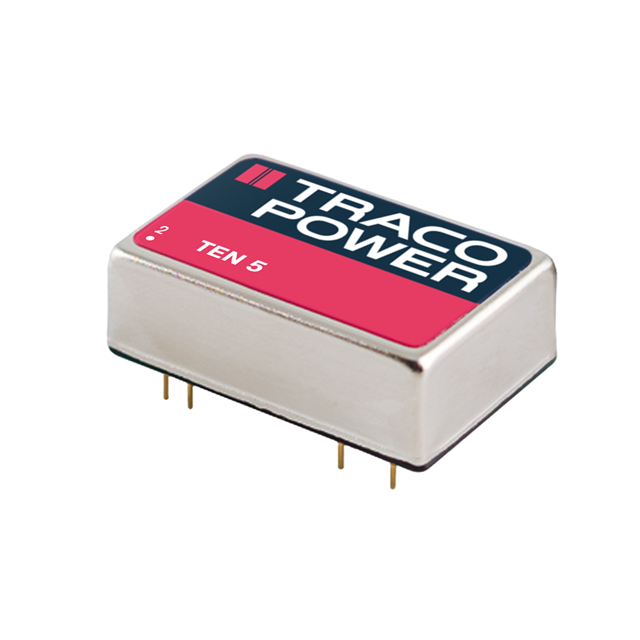

The TEN 5-1210 is a 5-Watt DC-DC converter manufactured by TRACO Power. This converter is designed to provide a regulated output voltage from a DC input source. It is commonly used in a variety of applications where isolated power is required, such as industrial automation, medical equipment, and telecommunications.

Applications

• Industrial automation: Provides isolated power for sensors, actuators, and control circuits in industrial environments.
• Medical equipment: Used in patient monitoring systems, diagnostic equipment, and other medical devices where safety and isolation are critical.
• Telecommunications: Employed in communication equipment for powering remote devices and providing isolation between different circuits.
• Instrumentation: Powers sensors and data acquisition systems in test and measurement applications.
• Aerospace and defense: Used in avionics and other aerospace applications where reliable power is required.

Features

• 5-Watt output power: Provides sufficient power for a variety of applications.
• 1500 VDC isolation: Offers high isolation voltage between the input and output circuits, enhancing safety and preventing ground loops.
• Wide input voltage range: Allows for flexible integration into various systems.
• Regulated output voltage: Provides a stable and precise output voltage, ensuring consistent performance.
• Short-circuit protection: Protects the converter and connected circuits from damage due to short circuits.
• Overload protection: Prevents the converter from being damaged by excessive load current.
• Operating temperature range: Specified operating temperature, often covering a wide range (e.g., -40°C to +85°C).

Benefits

• Improved reliability: Robust design ensures reliable operation in demanding environments.
• Enhanced safety: High isolation voltage provides enhanced safety for both equipment and personnel.
• Increased efficiency: High efficiency minimizes power dissipation and reduces heat generation.
• Simplified design: Integrated protection features simplify the design of power systems.

Additional Details

The TEN 5-1210 typically accepts a 12 VDC input and provides a 1000mA at 5VDC output (TEN 5-1210, indicating 12V input and 5V/1A output). Consult the manufacturer's datasheet for precise specifications, including the input voltage range, output voltage accuracy, ripple and noise characteristics, and efficiency. The datasheet also provides information on the isolation voltage, input and output capacitance, and thermal characteristics.

The converter typically comes in a small, encapsulated package. The package style and pinout are important considerations for mounting the converter on a printed circuit board (PCB). The datasheet provides detailed information on the package dimensions and pin assignments.
