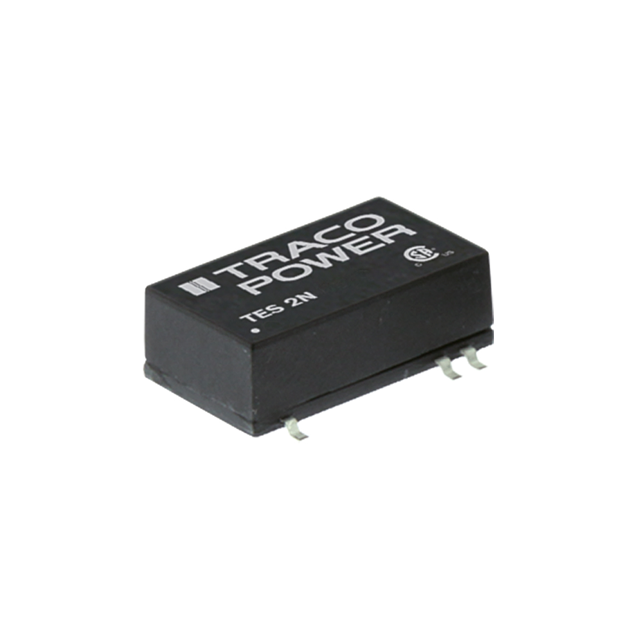

The TES 2N4812 is a 2-Watt isolated DC-DC converter module manufactured by TRACO Electronic AG. It's designed to provide a regulated output voltage from an unregulated input voltage, while also providing galvanic isolation between the input and output. This isolation is crucial for safety and preventing ground loops in sensitive electronic circuits.

Applications

• Industrial automation equipment
• Medical devices
• Test and measurement instrumentation
• Isolated power supplies for microcontrollers and sensors
• Distributed power systems

Features

• 2 Watt output power: Delivers sufficient power for various applications.
• Isolated output: Provides galvanic isolation between input and output.
• Wide input voltage range: Offers flexibility in power supply design.
• Regulated output voltage: Ensures a stable and precise output voltage.
• Short-circuit protection: Protects the converter and connected devices from damage.
• Overload protection: Prevents the converter from being overloaded.

Benefits

• Enhanced safety: Galvanic isolation protects against electrical shock and ground loops.
• Improved system performance: Regulated output voltage ensures stable operation of connected devices.
• Simplified system design: Wide input voltage range offers design flexibility.
• Reliable operation: Built-in protection features prevent damage and ensure long-term stability.
• Compact solution: Small module size allows for integration into space-constrained applications.

Additional Details

The TES 2N4812 DC-DC converter module is a compact and efficient solution for providing isolated power in various electronic systems. The galvanic isolation between the input and output is achieved through a transformer, which electrically isolates the input and output circuits. This isolation is essential for safety in medical devices and industrial equipment. The converter provides a regulated output voltage, which ensures that connected devices receive a stable and precise power supply, regardless of variations in the input voltage. The wide input voltage range allows for flexibility in power supply design.

The TES 2N4812 also features built-in protection circuits, including short-circuit protection and overload protection, which prevent damage to the converter and connected devices. The compact module size allows for integration into space-constrained applications. The datasheet provides detailed information on its electrical characteristics, isolation voltage, and environmental specifications. It is a reliable and versatile solution for providing isolated and regulated power.
