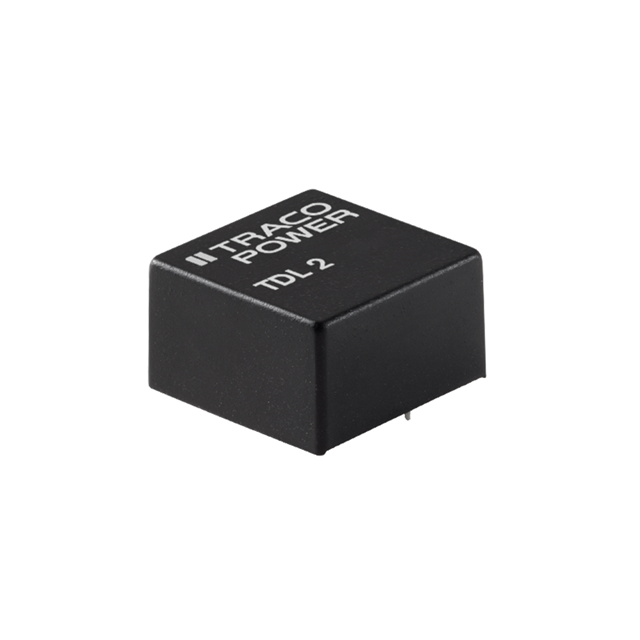

TDL 2-1223 Real Image
Same model may have multiple batches, images only for reference.

TDL 2-1223

Part No TDL 2-1223
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 2W / Isolated Module DC DC Converter 2 Output 15V -15V 67mA, 67mA 9V - 18V Input
Datasheet
TDL 2-1223 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 67mA, 67mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 70°C
Efficiency 86%
Mounting Through Hole
Case / Package 7-DIP Module, 5 Leads
Size / Dimension 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
Base Product Number TDL 2
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TDL2-1223,TDL 2-1223-ND
Standard Package 10
Win Source Part Number 1335335-TDL 2-1223
Ultra Librarian 3D Model Ultra Librarian TDL 2-1223 CAD Model

Description

The TDL 2-1223 is an isolated module DC-DC converter with a through-hole mounting style.

  • Power: 2W
  • Voltage Isolation: 1.5kV
  • Outputs: Two outputs
  • Maximum Current Output: 67mA each
  • Input Voltage Range: 9V to 18V
  • Output Voltage: 15V and -15V
  • Efficiency: 86%
  • Package Size: 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
  • Status: Not for new designs
  • Compliance: ROHS3 compliant
