Same model may have multiple batches, images only for reference.

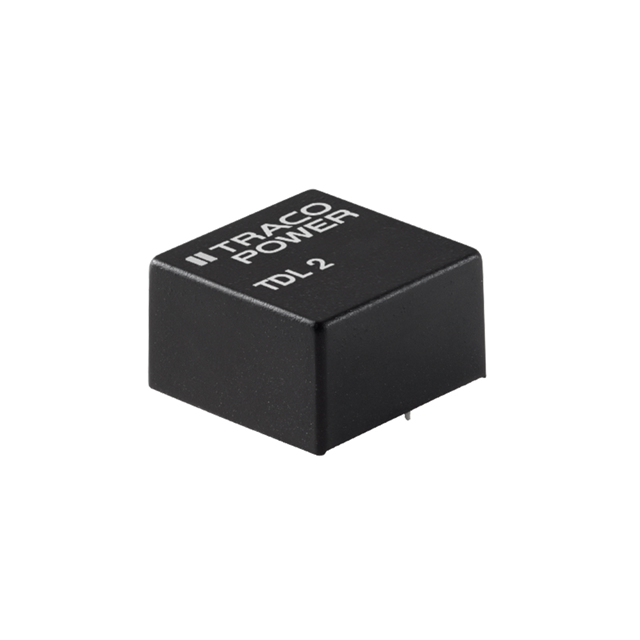

TDL 2-2412 Real Image
Same model may have multiple batches, images only for reference.

TDL 2-2412

Part No TDL 2-2412
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 2W / Isolated Module DC DC Converter 1 Output 12V 167mA 18V - 36V Input
Datasheet
TDL 2-2412 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Current - Output (Max) 167mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 70°C
Efficiency 86%
Mounting Through Hole
Case / Package 7-DIP Module, 4 Leads
Size / Dimension 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
Base Product Number TDL 2
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TDL 2-2412-ND,2266-TDL 2-2412,TDL2-2412
Standard Package 10
Win Source Part Number 1335351-TDL 2-2412
Ultra Librarian 3D Model Ultra Librarian TDL 2-2412 CAD Model

Description

This electronic component is manufactured by Traco Power and the Win Source Part Number is 1335351-TDL 2-2412.

  • Category: Power Supplies - Board Mount>DC DC Converters
  • Packaging: Tube
  • Type: Isolated Module
  • Features: SCP
  • Size/Dimension: 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
  • Applications: ITE (Commercial)
  • Standard Package: 10
  • Mounting Type: Through Hole
  • Power (watts): 2 W
  • Voltage Isolation: 1.5 kV
  • Number of Outputs: Single
  • Current Output (max): 167mA
  • Input Voltage (min): 18V
  • Input Voltage (max): 36V
  • Output Voltage: 12V
  • Efficiency: 86 percent
  • Temperature Range: -40°C ~ 70°C
  • Case/Package: 7-DIP Module, 4 Leads
  • REACH Status: REACH Unaffected
  • HTSUS: 8504.40.9580
  • Product Status: not for new designs
  • RoHS Compliance: ROHS3 Compliant
