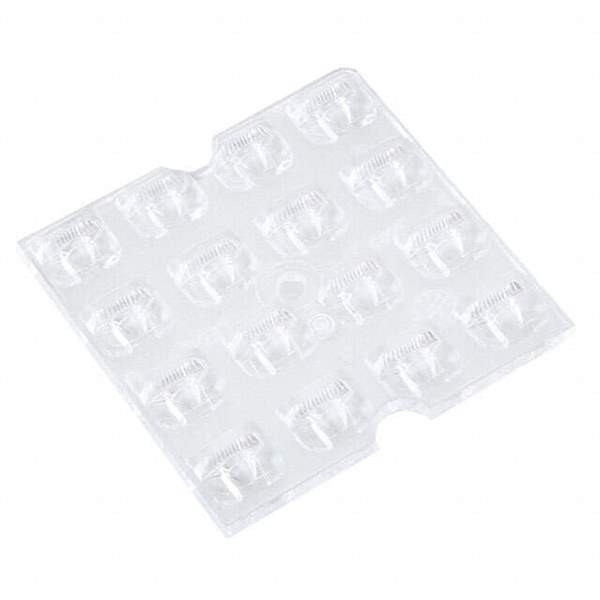

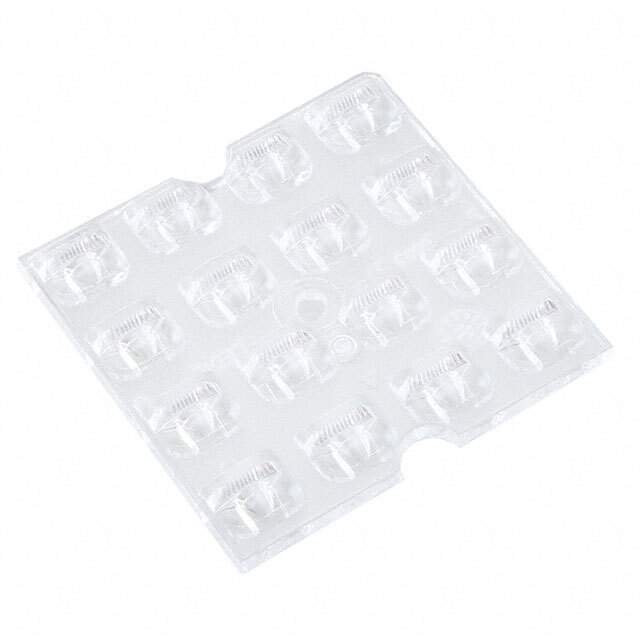

C16503_STRADELLA-16-T3 Real Image
Same model may have multiple batches, images only for reference.

C16503_STRADELLA-16-T3

Part No C16503_STRADELLA-16-T3
Manufacturer Ledil
Catalog Optics - Lenses
Description LENS CLEAR ASYMMETRICAL SCREW / Lens Clear Asymmetrical Screw
Datasheet
C16503_STRADELLA-16-T3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Optics - Lenses
Mfr Ledil
Series Stradella
Package Bulk
Type Lens
Color Clear
Number of LEDs 16
Lens Style Square with Multiple Top
Lens Size 49.5mm x 49.5mm
Optical Pattern Asymmetrical
For Use With/Related Manufacturer Cree, Lumileds, Nichia, Osram, Samsung
Material Acrylic
Mounting Type Screw
Base Product Number C16503
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9001.90.4000
Other Names 711-1584
Standard Package 160
Win Source Part Number 1111576-C16503_STRADELLA-16-T3
Ultra Librarian 3D Model Ultra Librarian C16503_STRADELLA-16-T3 CAD Model

Description

The C16503_STRADELLA-16-T3 is a lens component manufactured by Ledil.

  • Shape: Square
  • Top: Multiple
  • Lens Size: 49.5mm x 49.5mm
  • Optical Pattern: Asymmetrical
  • Material: Acrylic
  • Transparency: Transparent
  • Mounting Type: Screws
  • Compatible LED Products: Cree, Lumileds, Nichia, Osram, and Samsung
  • Package: Bulk
  • Standard Package: 160
