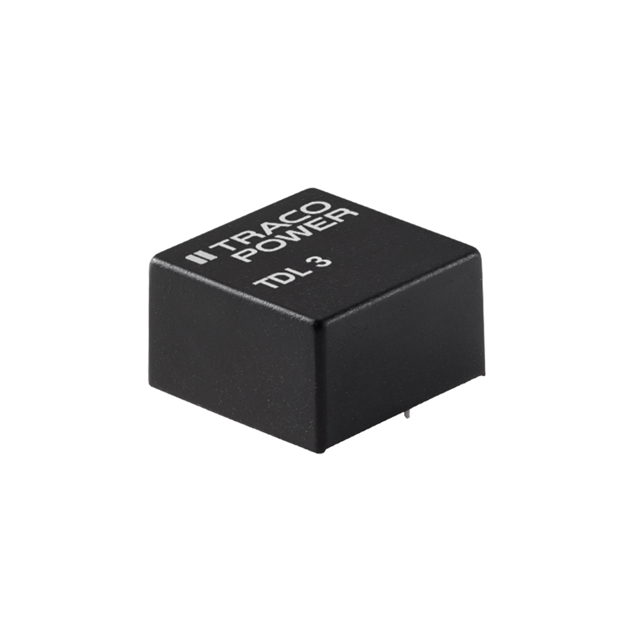

TDL 3-1223

Name: TDL 3-1223
Brand: Traco Power
SKU: 1335357
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TDL 3-1223
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 3W / Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 9V - 18V Input
Datasheet	TDL 3-1223 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Product Status	Not For New Designs
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	100mA, 100mA
Power (Watts)	3 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	OCP, SCP
Temperature Range - Operating	-40°C ~ 70°C
Efficiency	87%
Mounting	Through Hole
Case / Package	7-DIP Module, 5 Leads
Size / Dimension	0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
Base Product Number	TDL 3
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TDL 3-1223-ND,TDL3-1223
Standard Package	10
Win Source Part Number	1335357-TDL 3-1223
Ultra Librarian 3D Model	Ultra Librarian TDL 3-1223 CAD Model

Alternative Products

Description

The Traco Power TDL 3-1223 is a DC-DC converter module that is designed for use in ITE (Commercial) applications.

Mounting Style: Through-hole
Package: 7-DIP module with 5 leads
Power Rating: 3 watts
Features: OCP and SCP
Voltage Isolation: 1.5 kV
Outputs: Two
Maximum Output Current: 100mA each
Input Voltage Range: 9V and 18V
Output Voltage: 15V (output 1), -15V (output 2)
Efficiency: 87%
Temperature Range: -40°C to 70°C
ROHS Compliance: ROHS3 compliant
Status: Not for new designs
