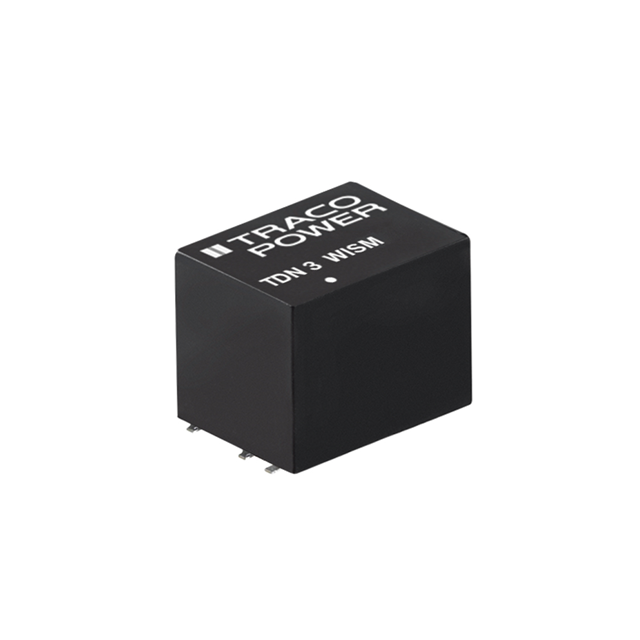

Same model may have multiple batches, images only for reference.

TDN 3-4823WISM

Name: TDN 3-4823WISM
Brand: Traco Power
SKU: 1335469
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TDN 3-4823WISM
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 3W / Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 18V - 75V Input
Datasheet	TDN 3-4823WISM Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	100mA, 100mA
Power (Watts)	3 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, SCP
Temperature Range - Operating	-40°C ~ 70°C
Efficiency	82%
Mounting	Surface Mount
Case / Package	7-SMD Module, 6 Leads
Size / Dimension	0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Base Product Number	TDN 3
RoHS Status	ROHS3 Compliant
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TDN3-4823WISM,TDN 3-4823WISM-ND
Standard Package	10
Win Source Part Number	1335469-TDN 3-4823WISM
Ultra Librarian 3D Model	Ultra Librarian TDN 3-4823WISM CAD Model

Alternative Products

Description

The Traco Power 1335469-TDN 3-4823WISM is a high-quality DC DC converter that comes in a 7-SMD module with 6 leads.

Type: Isolated module
Power Output: 3W
Efficiency: 82%
Number of Outputs: 2
Current Output: 100mA each
Voltage Output: 15V and -15V respectively
Input Voltage Range: 18V to 75V
ROHS3 Compliant: Yes
Suitable for: Commercial applications
