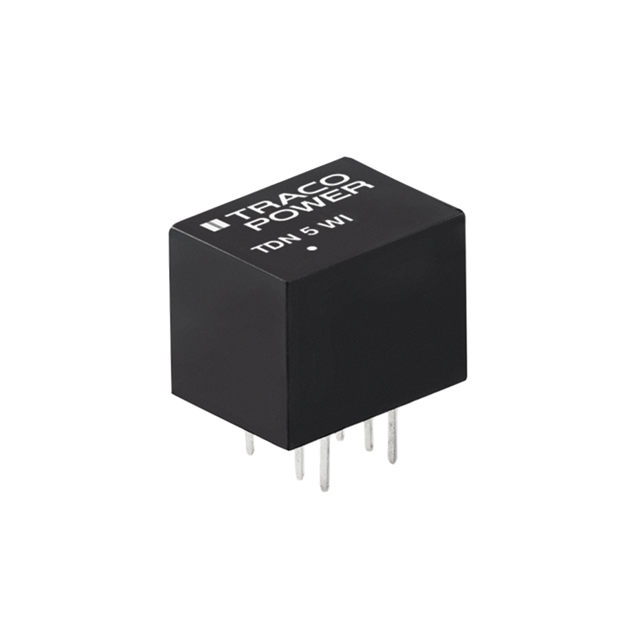

The Traco Power 1335511-TDN 5-4821WI is an isolated module DC DC converter.

• Category: Power supplies - board mount
• Packaging: Tube
• Feature: Remote on/off
• Feature: SCP
• Size/Dimension: 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
• Applications: ITE (Commercial)
• Standard Package: 10
• Mounting Type: Through hole
• Power (watts): 5 W
• Voltage - isolation: 1.6 kV
• Outputs: Two
• Maximum Current - Output: 500mA
• Voltage - Input (min): 18V
• Voltage - Input (max): 75V
• Voltage - Output 1: 5V
• Voltage - Output 2: -5V
• Efficiency: 80%
• Temperature Range: -40°C ~ 75°C (With Derating)
• Case/Package: 7-DIP module, 6 leads
• MSL Level: Not applicable
• REACH Status: REACH unaffected
• HTSUS: 8504.40.9580
• Other part number: TDN 5-4821WI-ND, TDN5-4821WI
• Base product number: TDN 5
• ROHS3 Compliant: Yes
