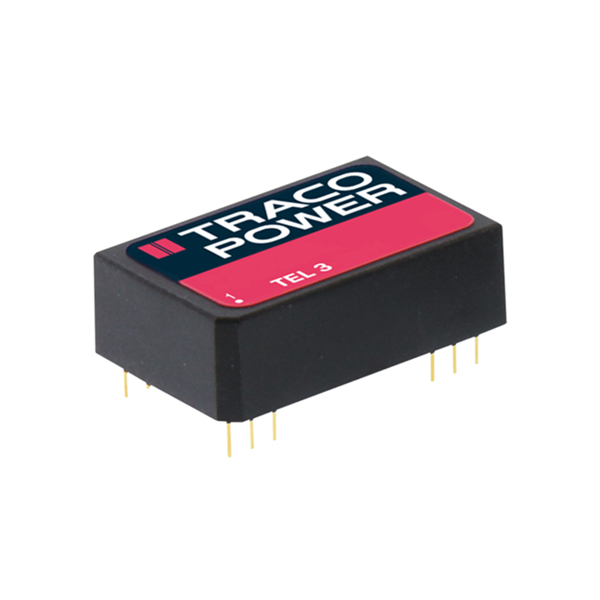

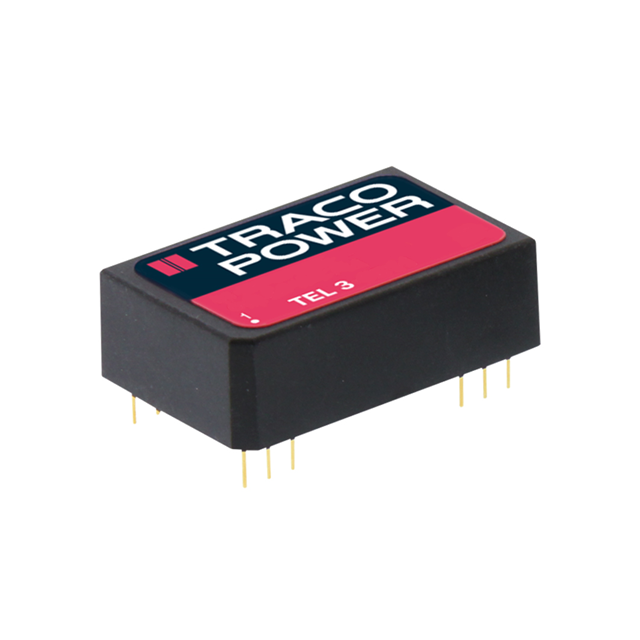

TEL 3-2423 Real Image
Same model may have multiple batches, images only for reference.

TEL 3-2423

Part No TEL 3-2423
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 3W / Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 18V - 36V Input
Datasheet
TEL 3-2423 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Traco Power
Series TEL 3 (3W)
Package Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 100mA, 100mA
Power (Watts) 3 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 81%
Mounting Type Through Hole
Package / Case 24-DIP Module, 13 Leads
Dimension 1.26" L x 0.79" W x 0.40" H (32.0mm x 20.0mm x 10.2mm)
Base Product Number TEL 3
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1951-2541
Standard Package 10
Win Source Part Number 1225165-TEL 3-2423
Ultra Librarian 3D Model Ultra Librarian TEL 3-2423 CAD Model

Description

The TEL 3-2423 is a 3W isolated module DC-DC converter from Traco Power.

  • Power: 3W
  • Outputs: 15V and -15V
  • Efficiency: 81%
  • Mounting Type: Through-Hole
  • Package/Case: 24-DIP Module, 13 Leads
  • Application: ITE (commercial)
  • Voltage Isolation: 1.5 kV
