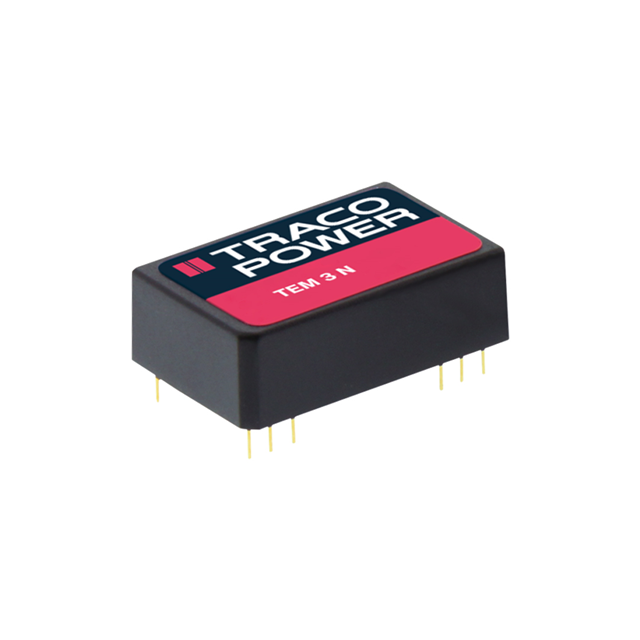

Same model may have multiple batches, images only for reference.

TEM 3-0522N

Name: TEM 3-0522N
Brand: Traco Power
SKU: 1335628
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TEM 3-0522N
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 4.5V - 5.5V Input
Datasheet	TEM 3-0522N Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	125mA, 125mA
Power (Watts)	3 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	78%
Mounting	Through Hole
Case / Package	24-DIP Module, 12 Leads
Size / Dimension	1.26" L x 0.79" W x 0.39" H (32.0mm x 20.0mm x 10.0mm)
Base Product Number	TEM 3
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	1951-1533
Standard Package	10
Win Source Part Number	1335628-TEM 3-0522N
Ultra Librarian 3D Model	Ultra Librarian TEM 3-0522N CAD Model

Alternative Products

Description

This electronic component is a DC-DC converter device from Traco Power.

Product Type: 3W isolated module type with SCP features
Designed to provide power to: ITE (Commercial) applications
Voltage Isolation Capacity: 1.5 kV
Outputs: 2
Maximum Output Current: 125mA, 125mA
Voltage Input Range: 4.5V to 5.5V
Voltage Output: 12V, -12V
Efficiency: 78% efficiency
Operating Temperature Range: -40°C ~ 85°C (With Derating)
ROHS3: compliant
